Flatline Spray Solutions

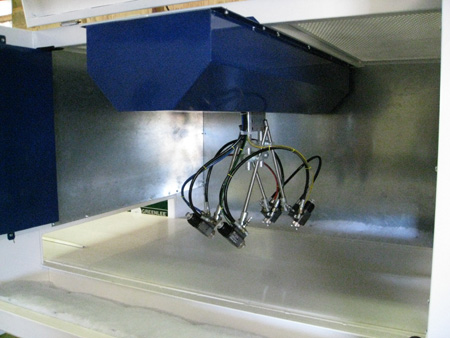

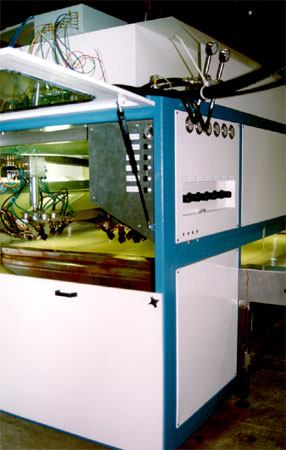

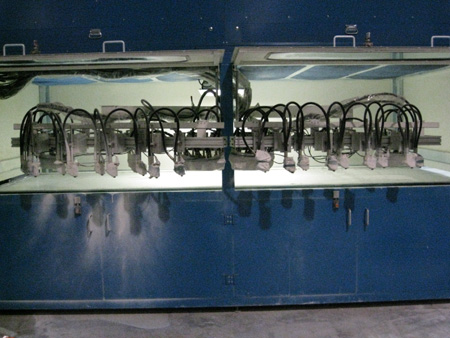

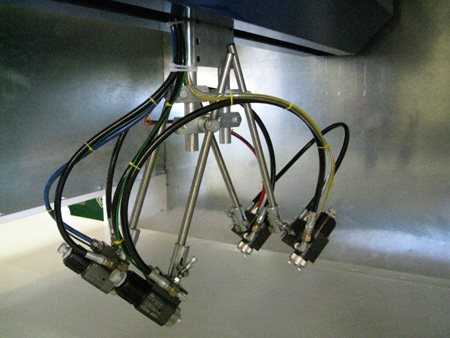

At Mannix Company, we manufacture flatline spray machinery. The Mini Flatline Machine can spray product widths up to 44” and incorporates 1 reciprocator with (4) four spray guns. The Max Flatline Machine can spray product widths up to 68” and incorporates (2) reciprocators with (8) eight spray guns.

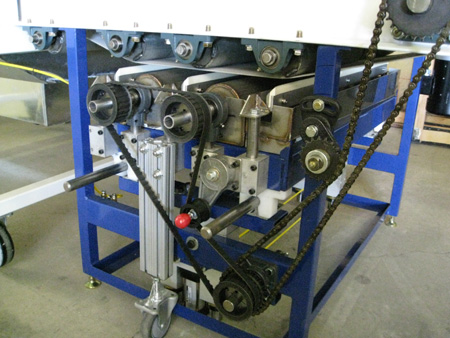

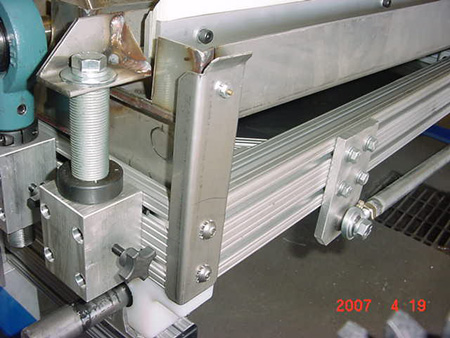

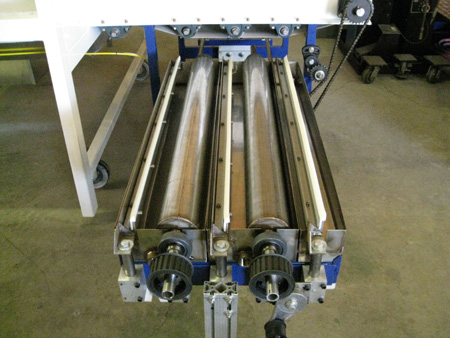

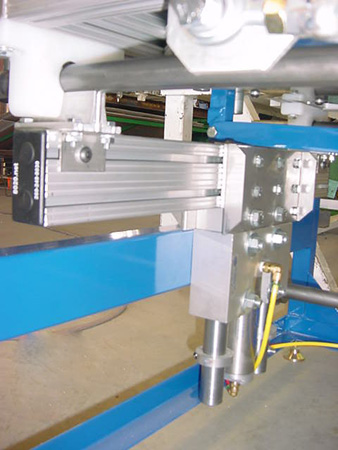

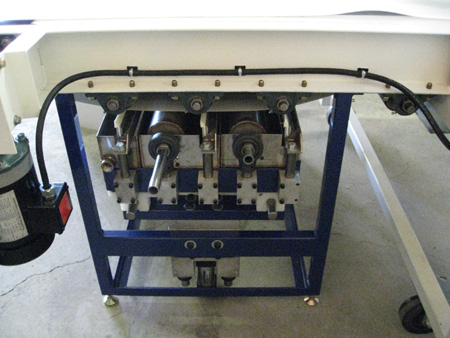

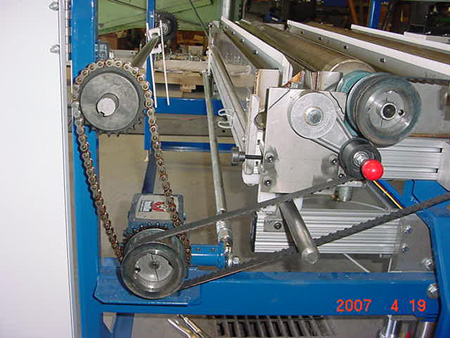

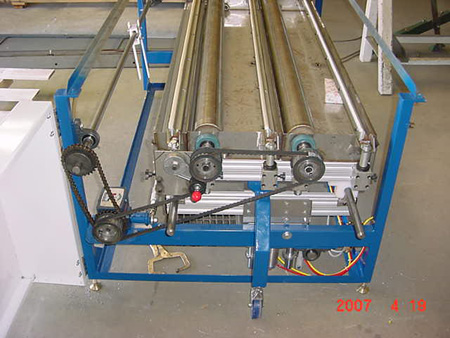

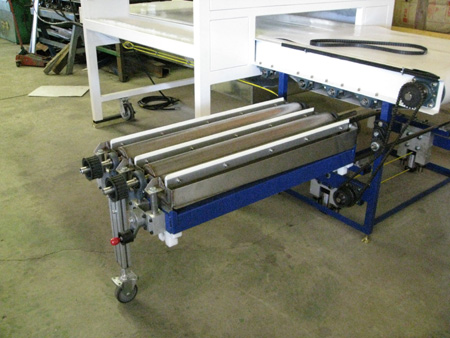

Both machines have an overspray reclaim and belt cleaning system. Each machine also has the capability to spray and reclaim water, solvent and UV sprayed coating.

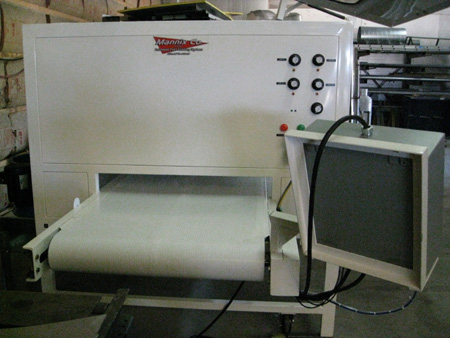

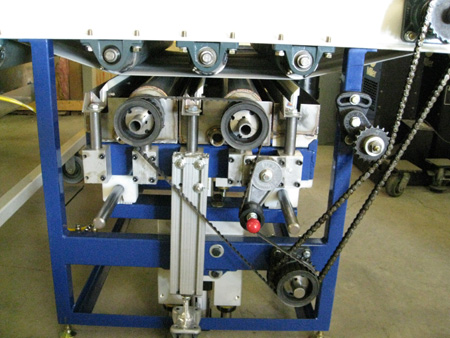

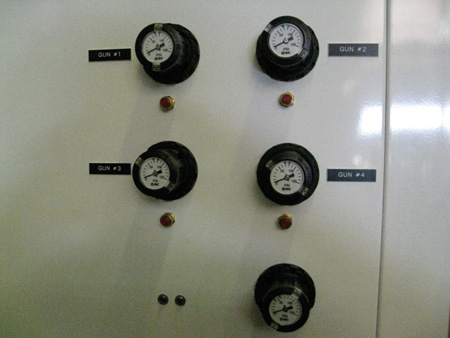

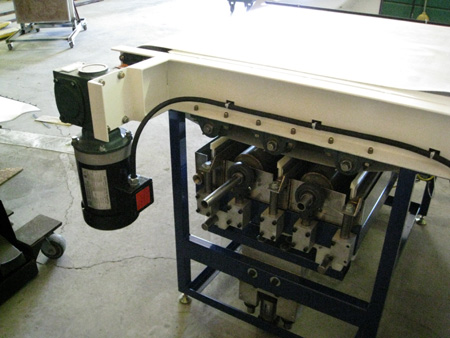

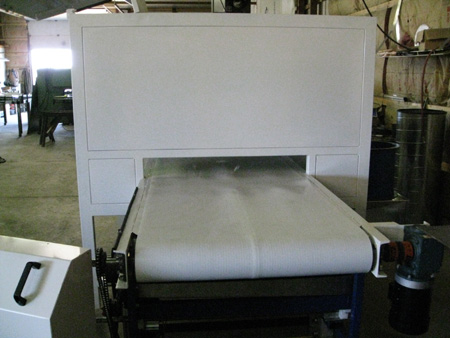

Mini Flatline Machine:

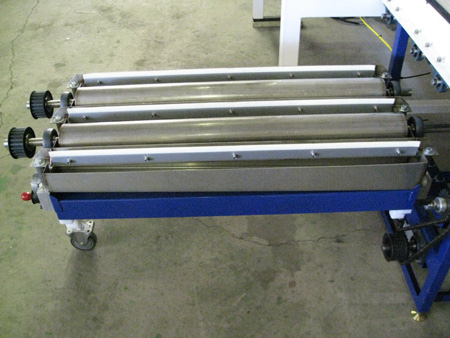

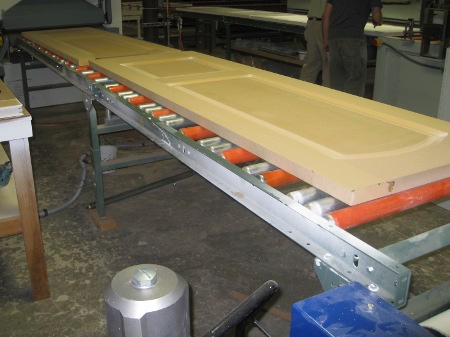

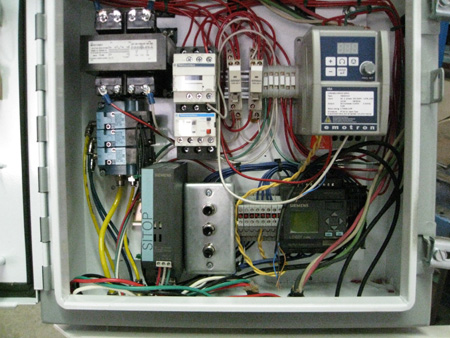

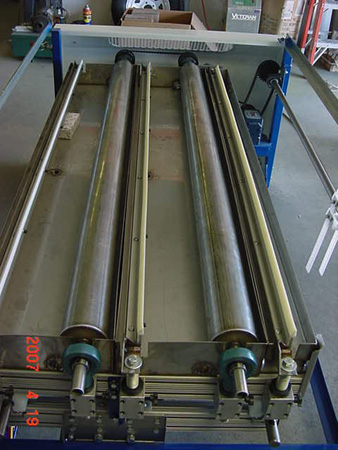

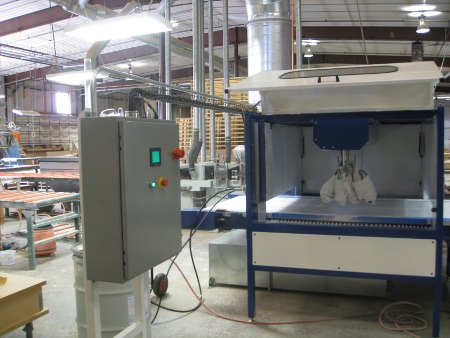

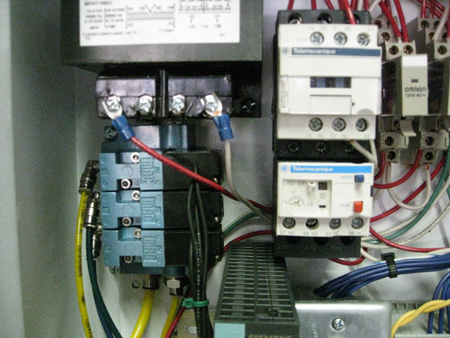

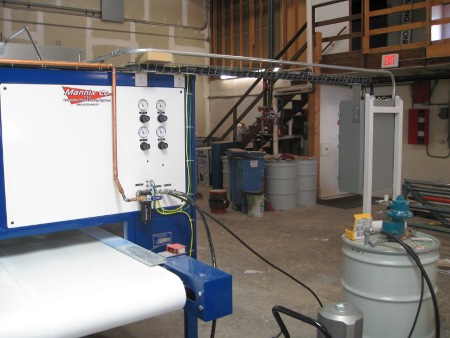

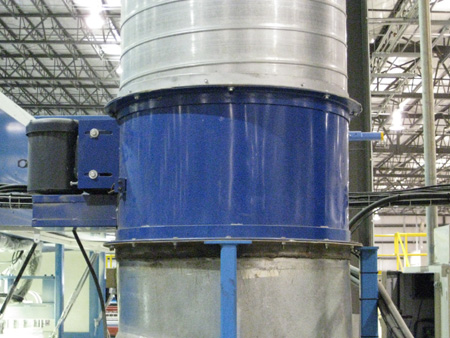

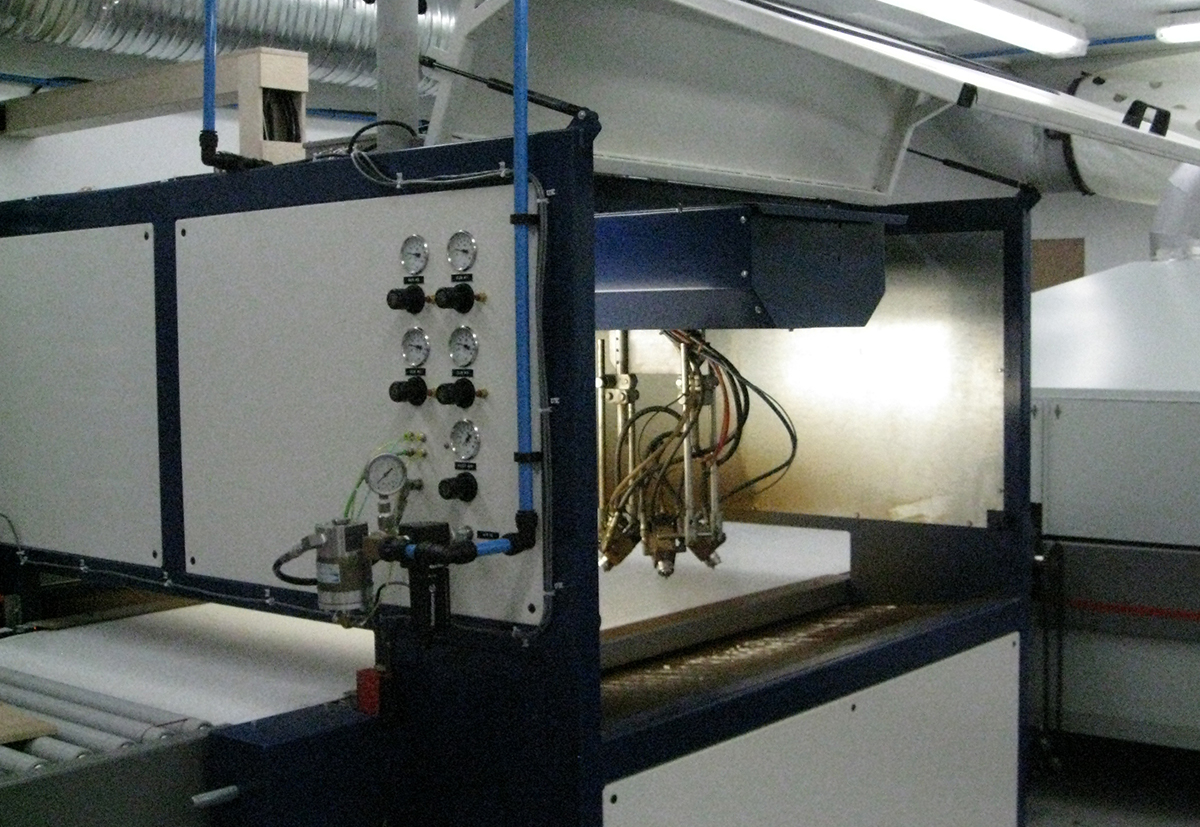

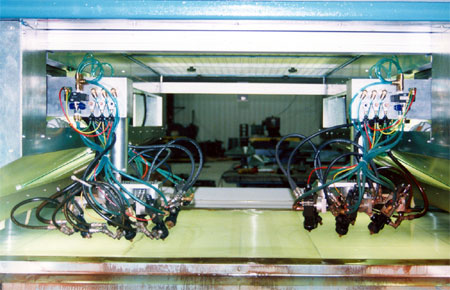

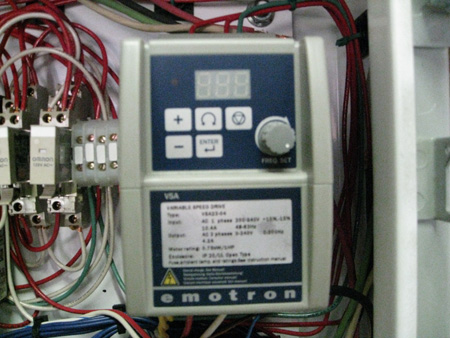

This machine is manufactured in (3) three different spray widths 32” 38” & 44” with a line speed up to 12 FPM. Each unit is designed with a single reciprocator that traverses across the spray belt to apply uniform finish to the product being sprayed. Overspray on the belt is reclaimed for future use and the belt is cleaned each revolution. Controls include VFD for belt speed, exhaust fan on/off and micro processor for spray gun triggering.

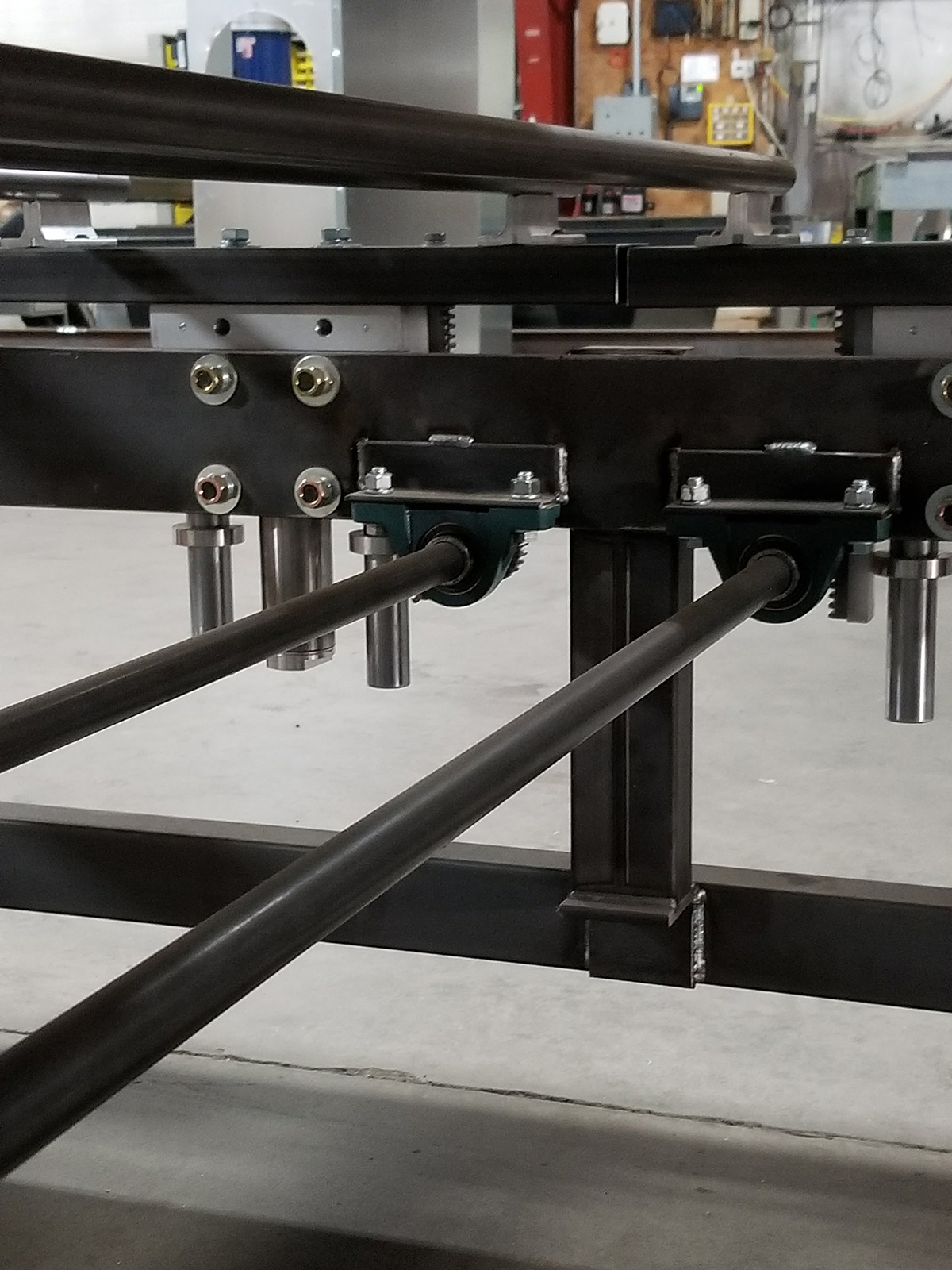

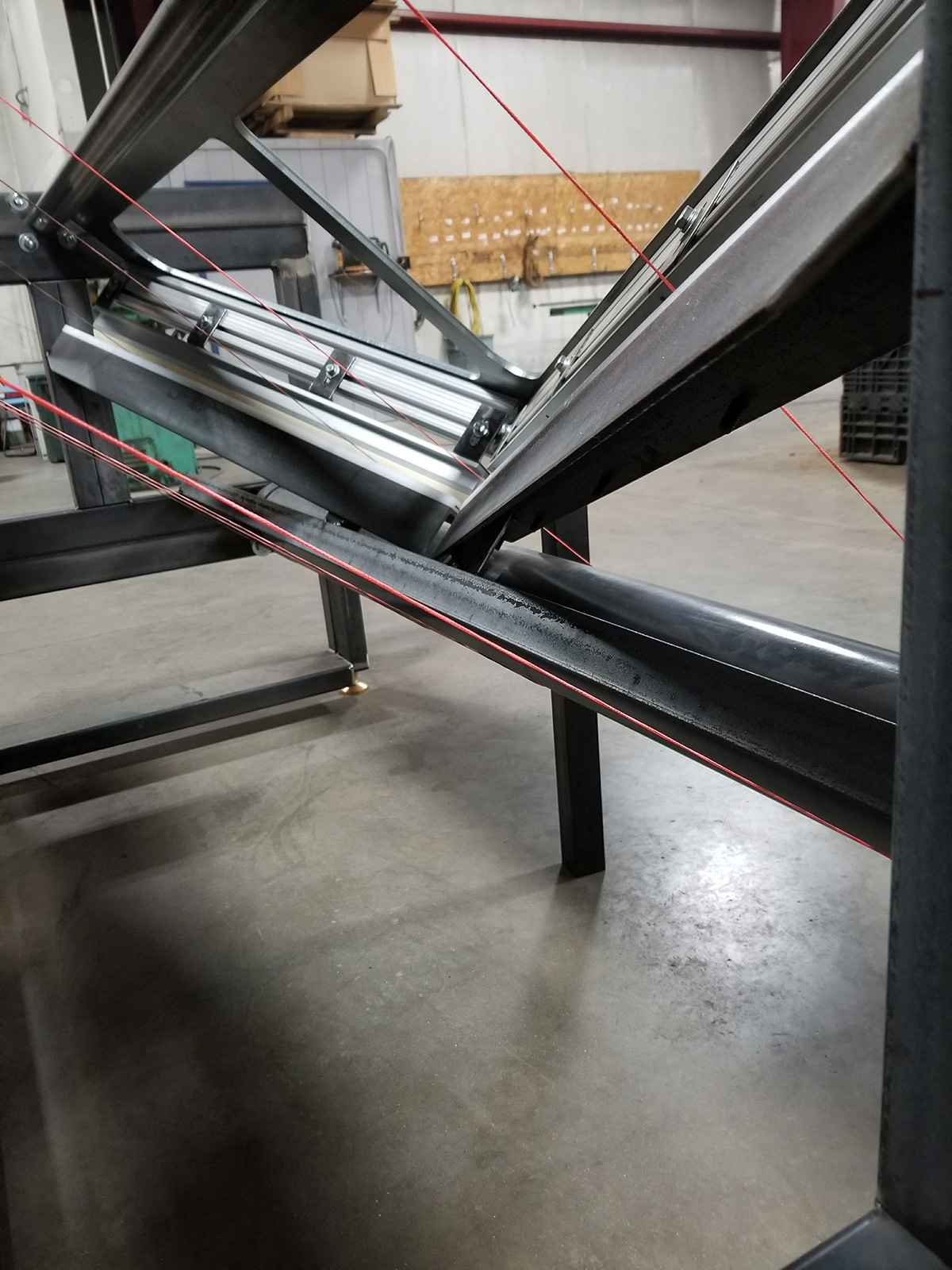

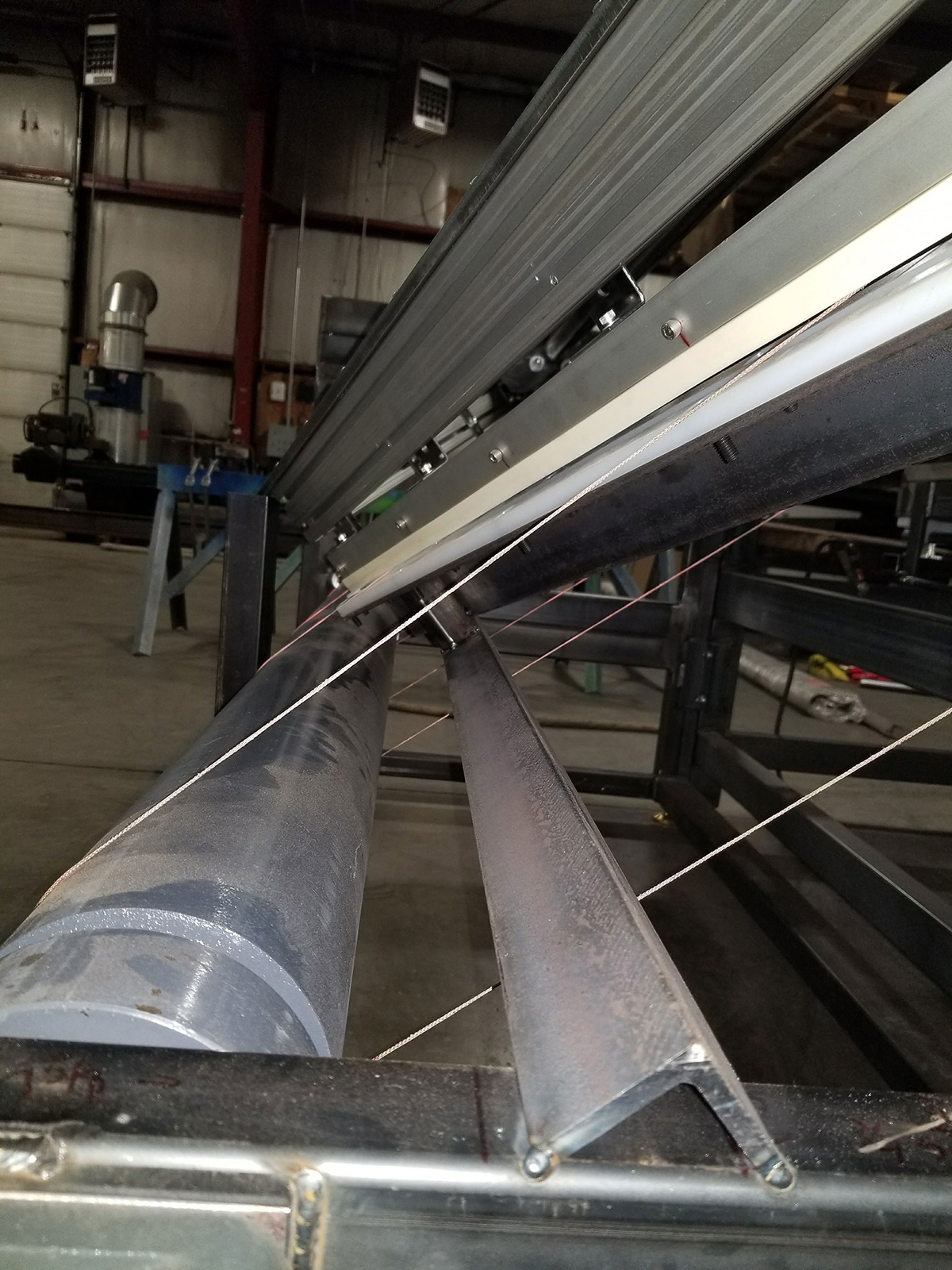

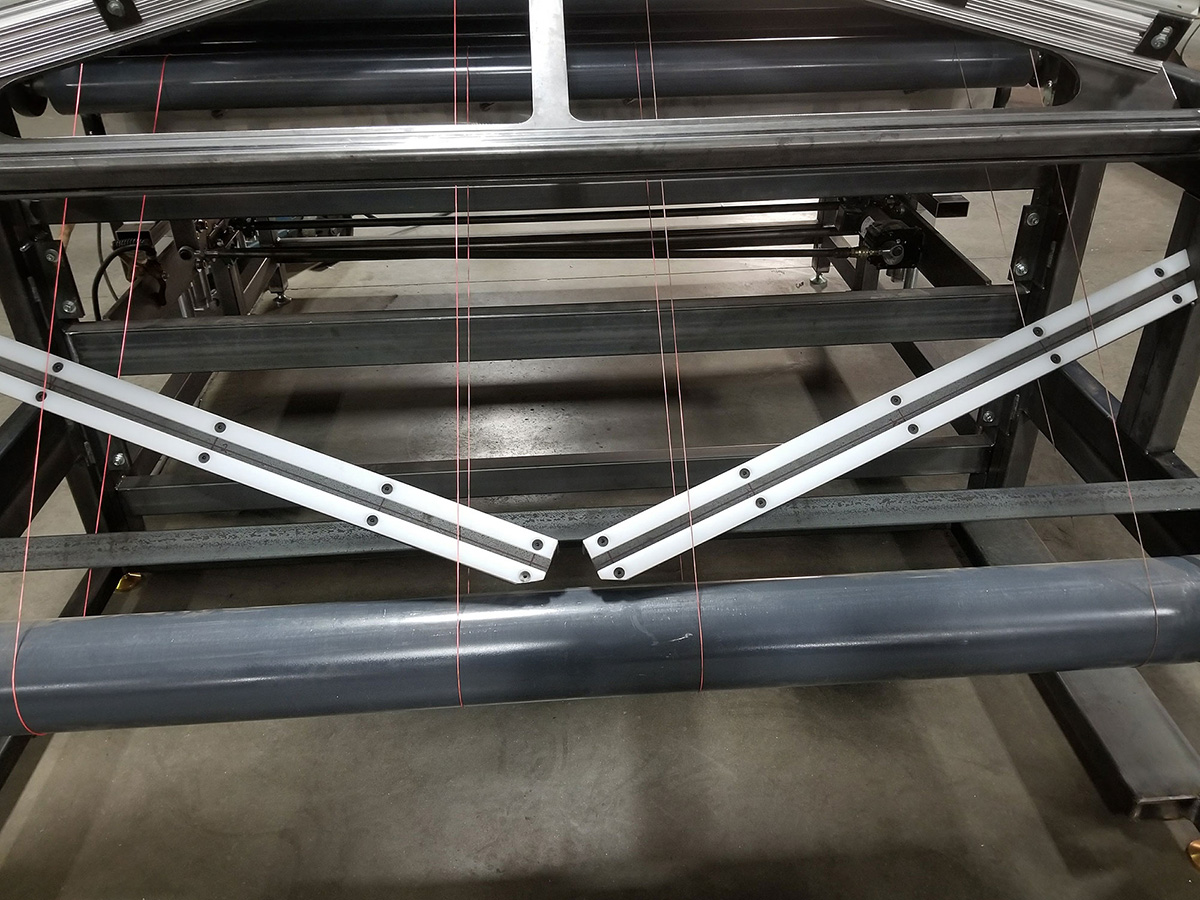

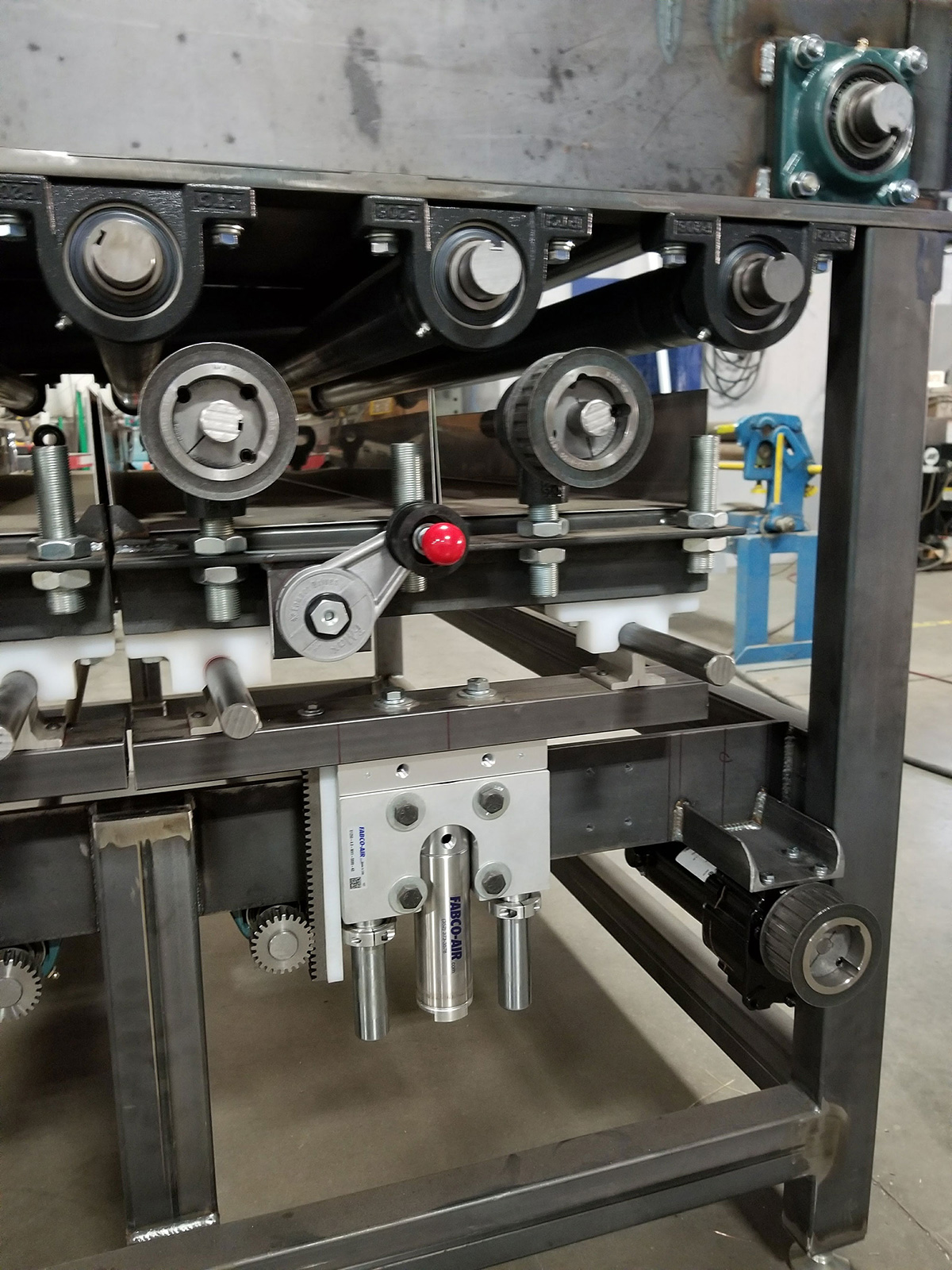

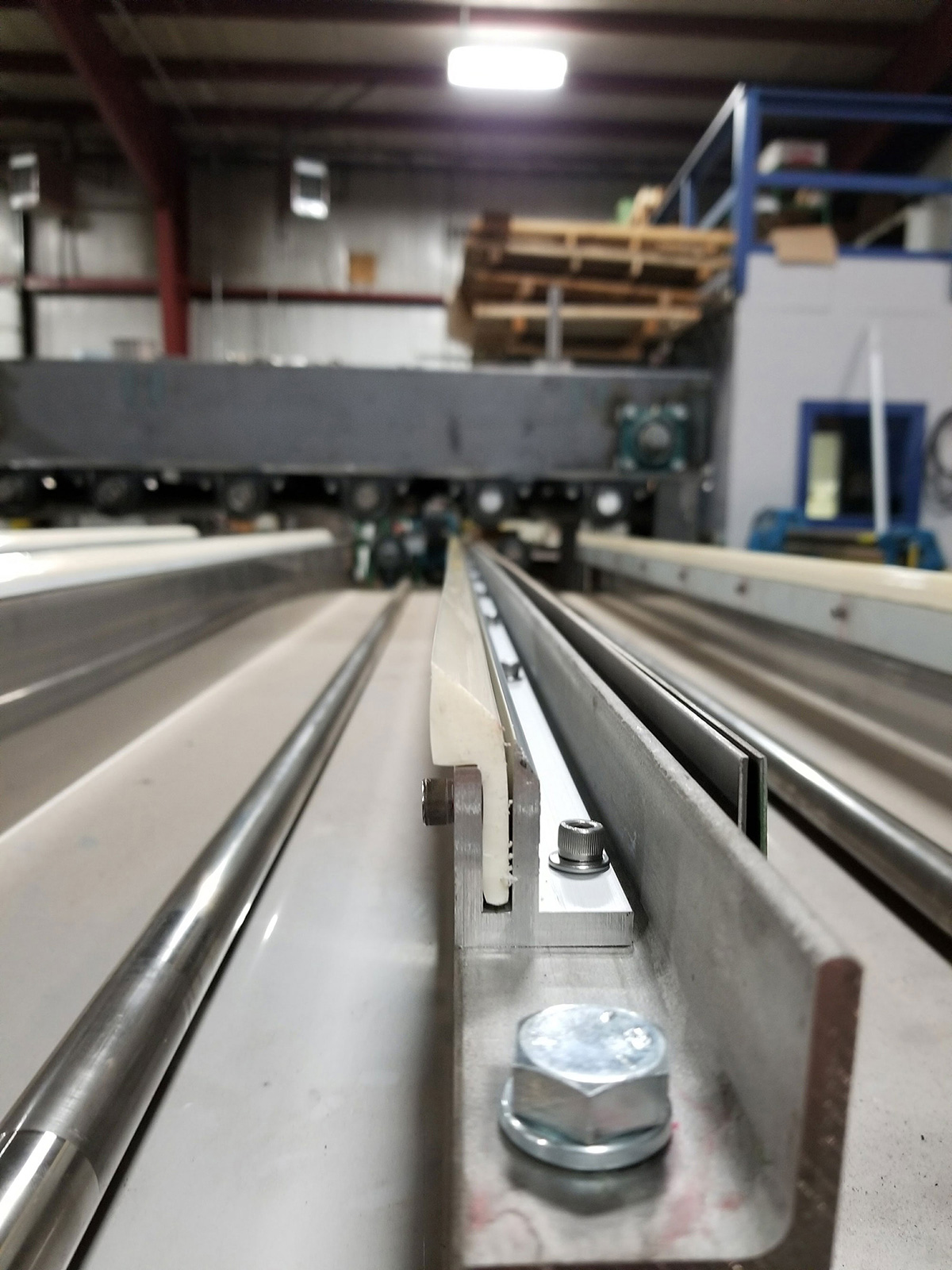

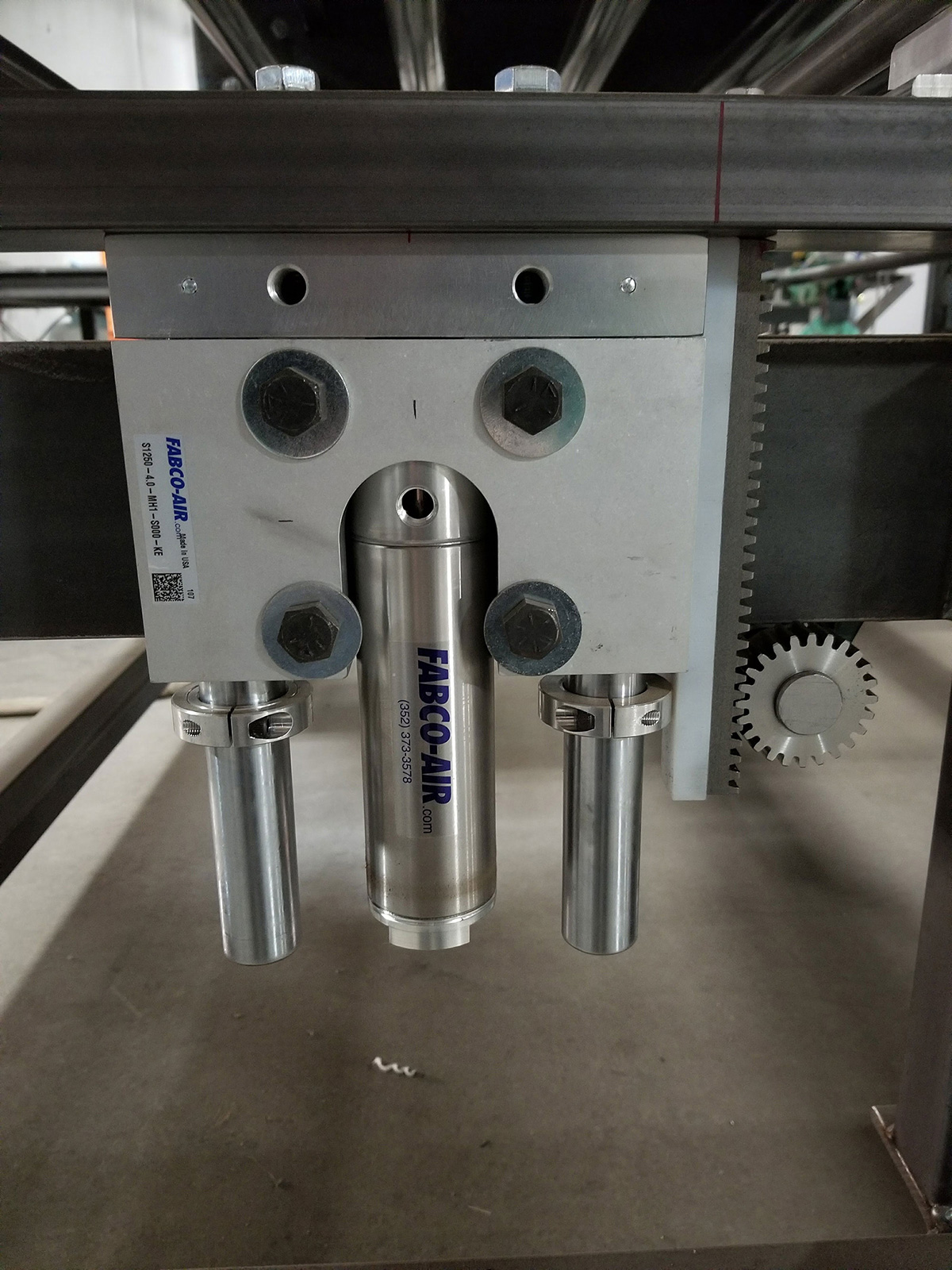

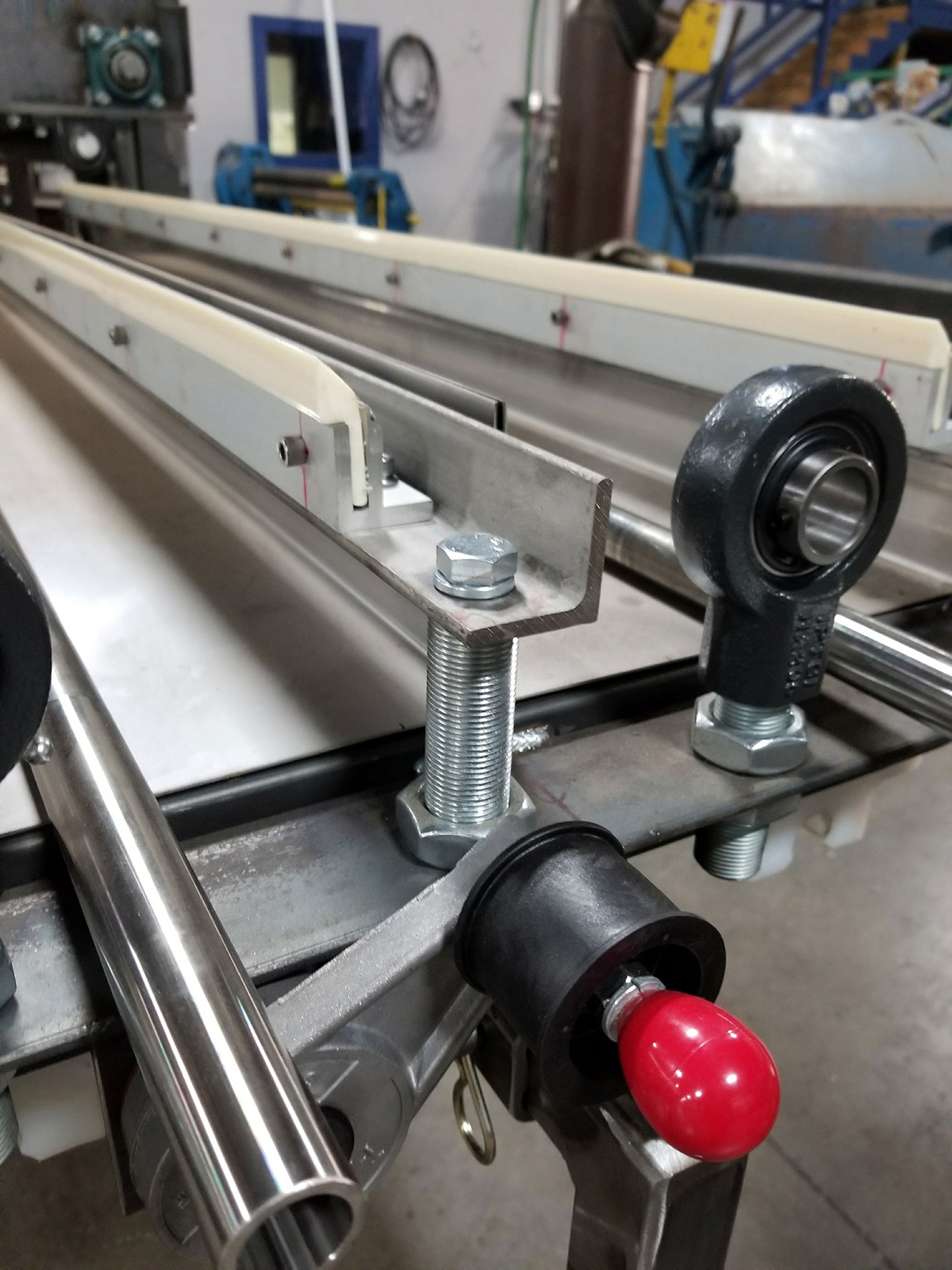

Max Flatline Machine:

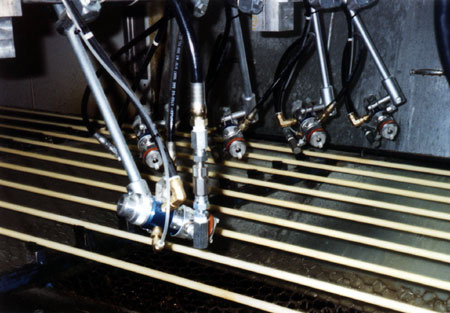

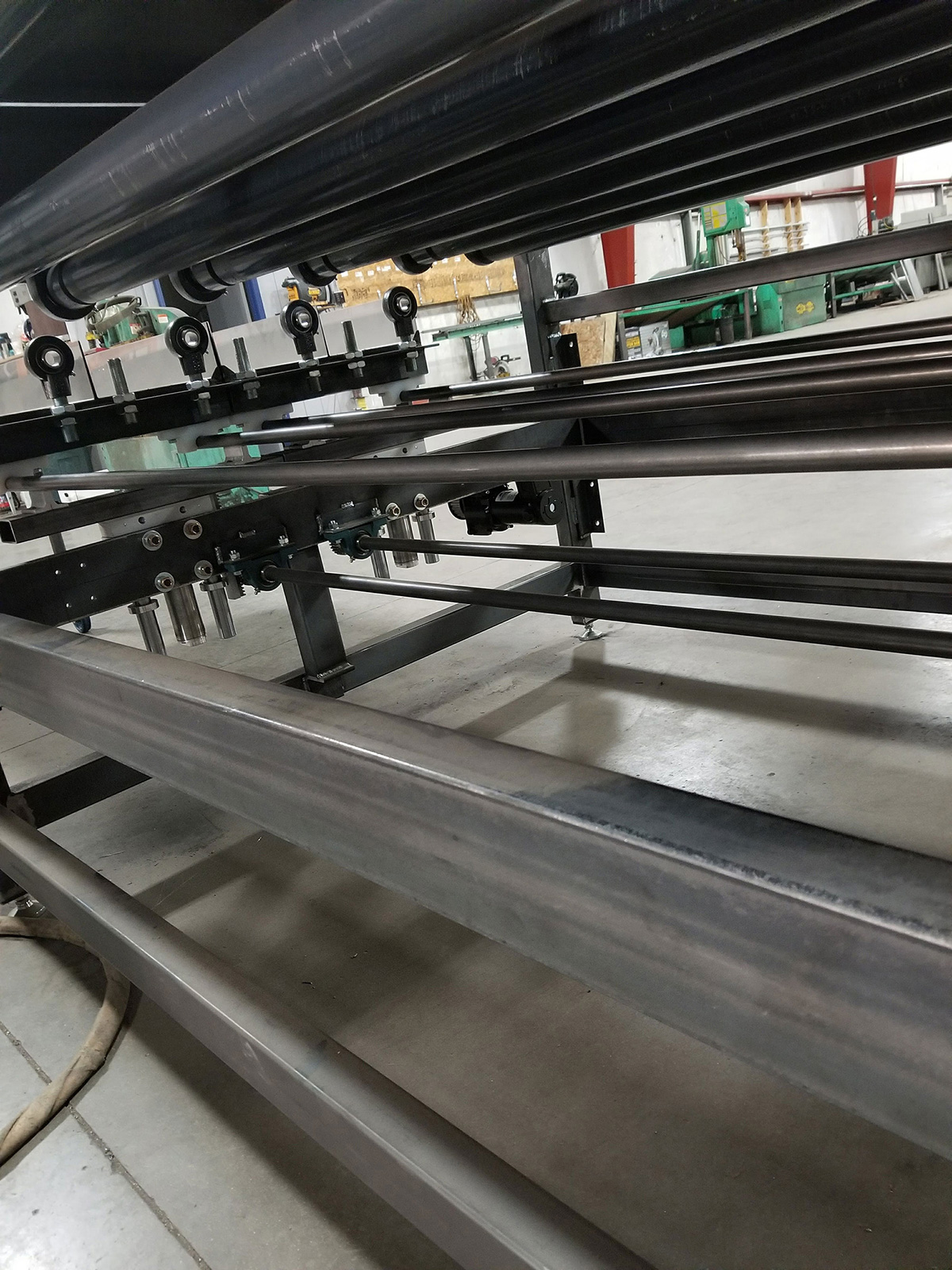

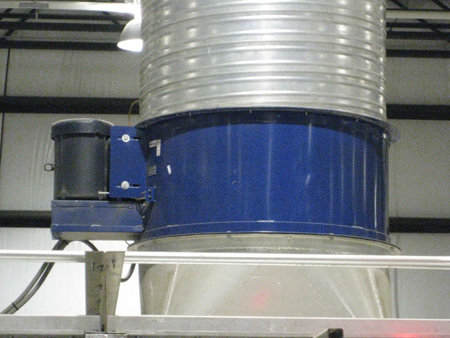

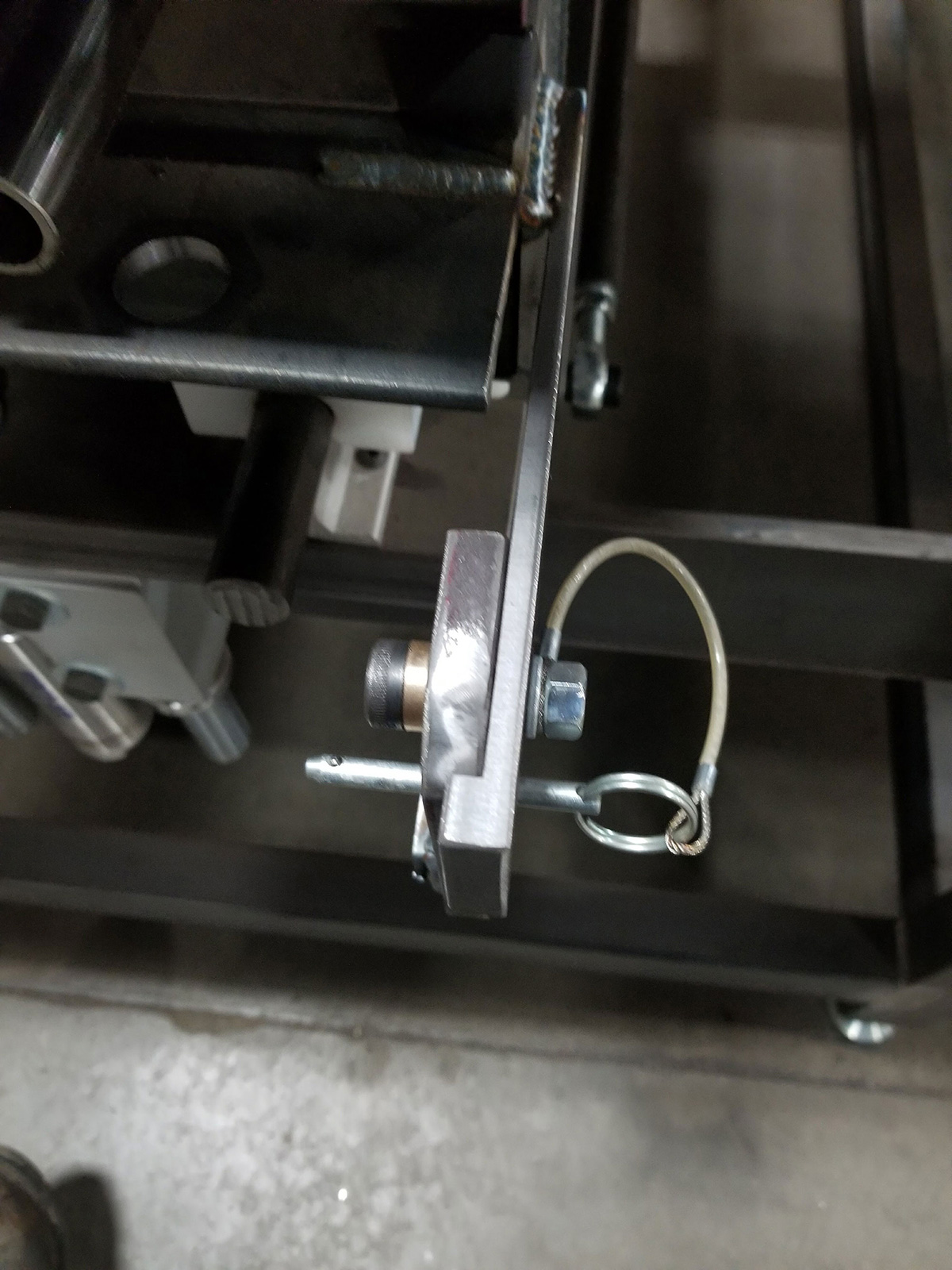

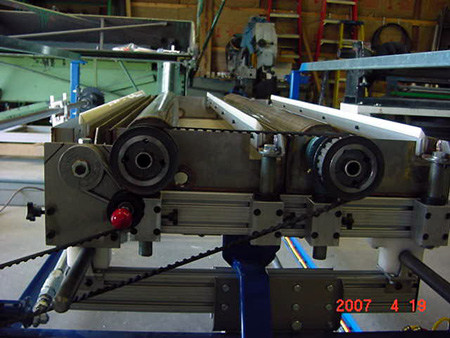

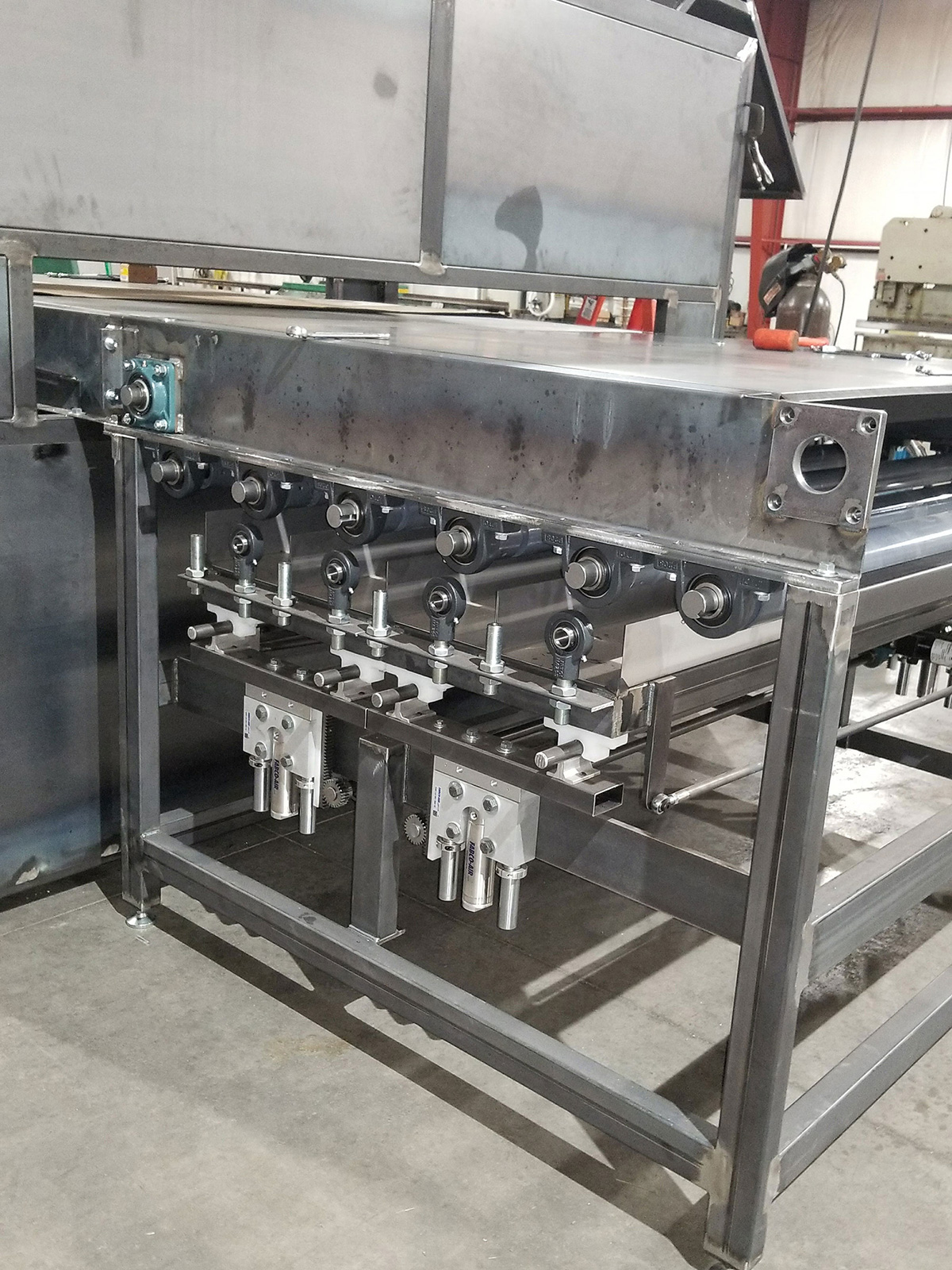

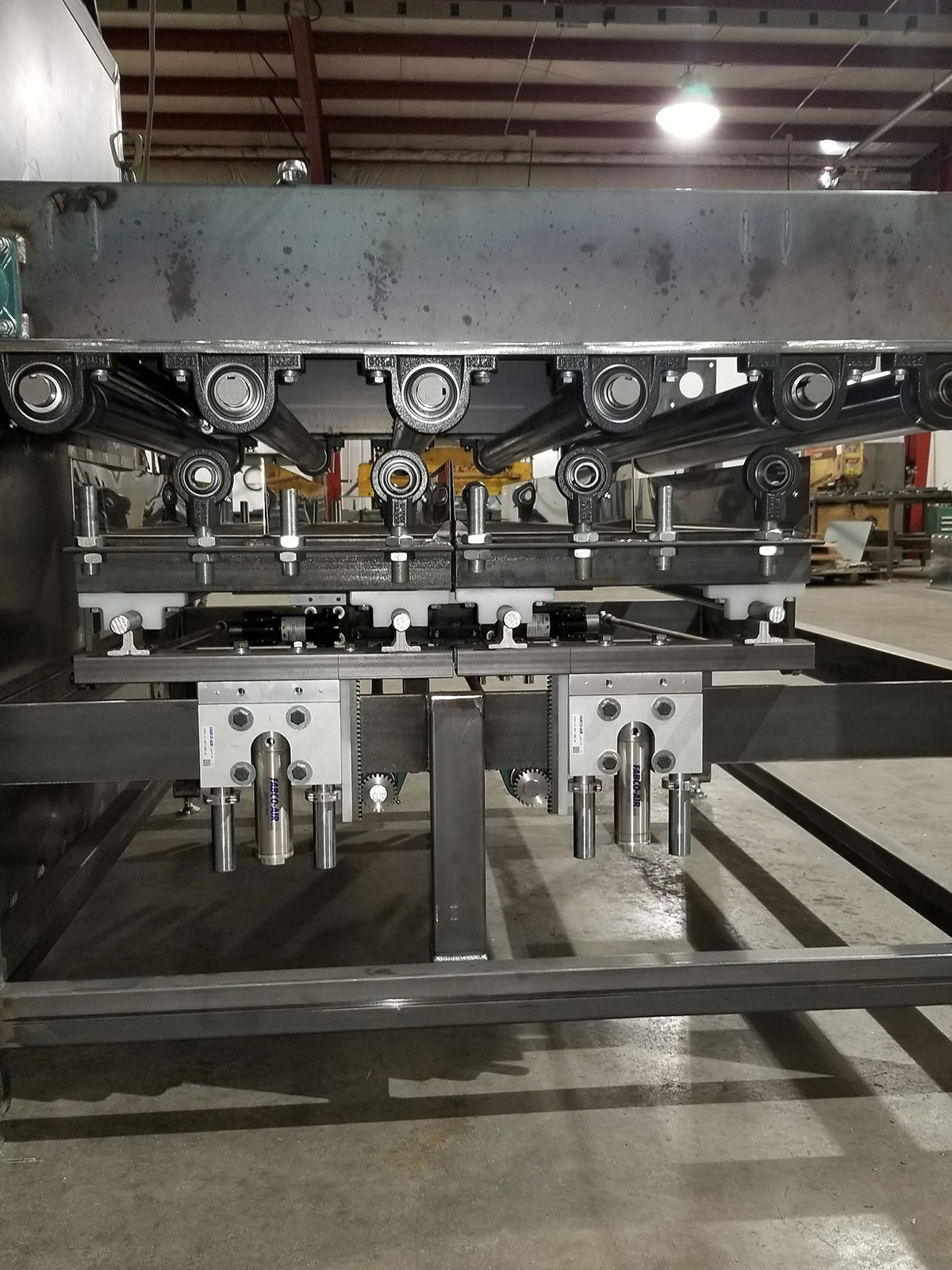

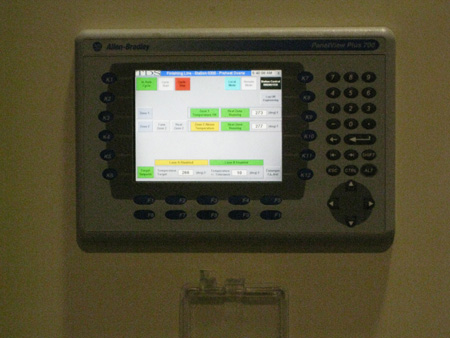

This machine is manufactured in (4) four different spray widths 50” 56” 62” & 68” with a line speed up to 30 FPM. Each unit is designed with a dual servo drive reciprocator that traverses across the spray belt to apply uniform finish to the product being sprayed. Overspray on the belt is reclaimed for future use and the belt is cleaned each revolution. Controls include VFD for belt speed, exhaust fan on/off, servo drive controller and microprocessor for spray gun triggering.

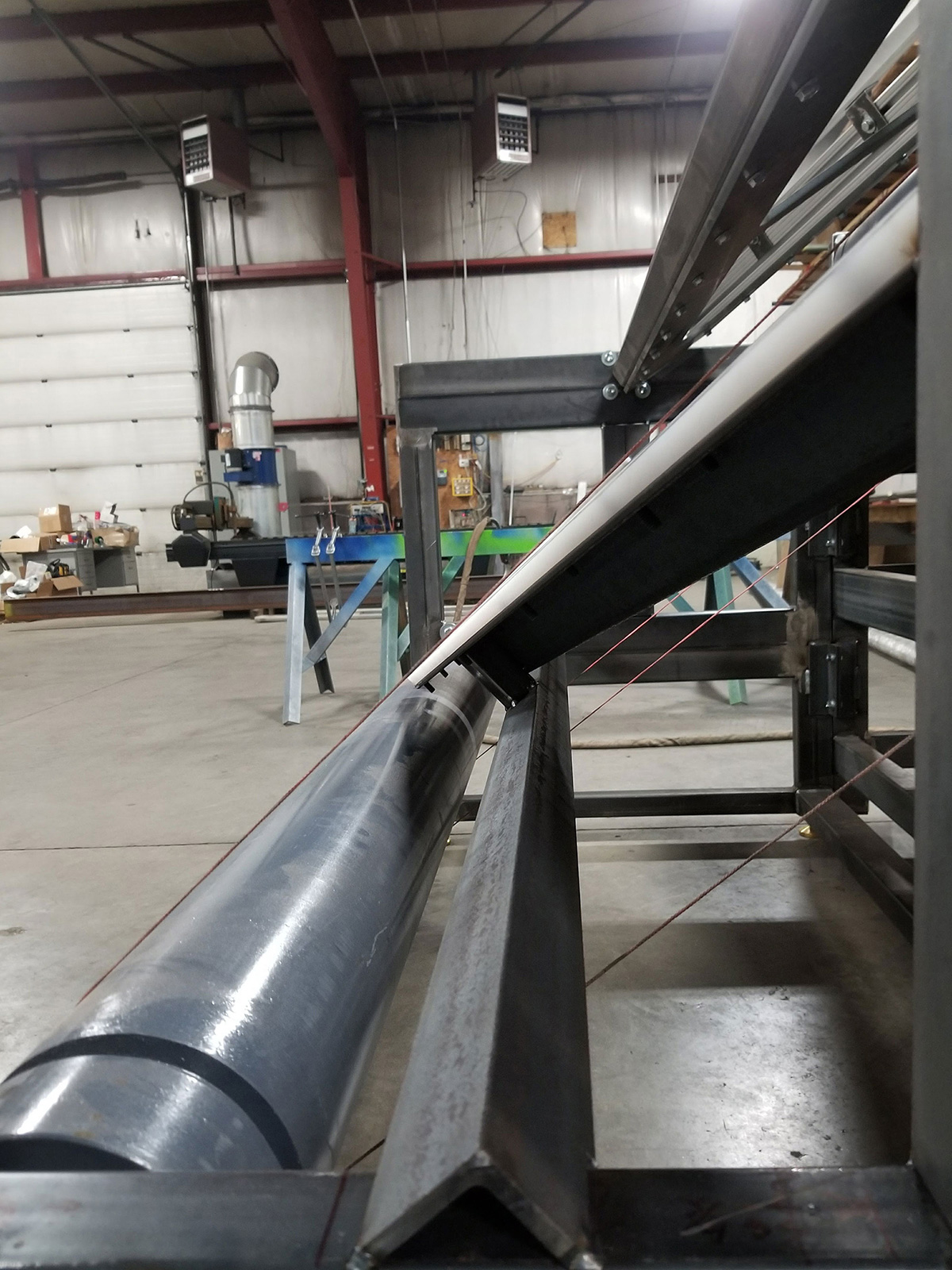

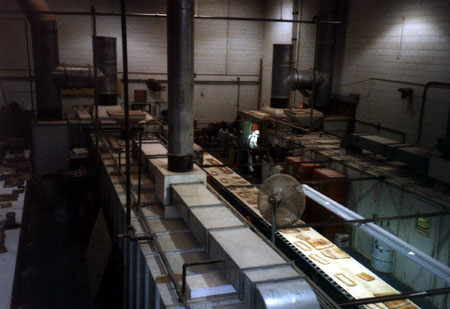

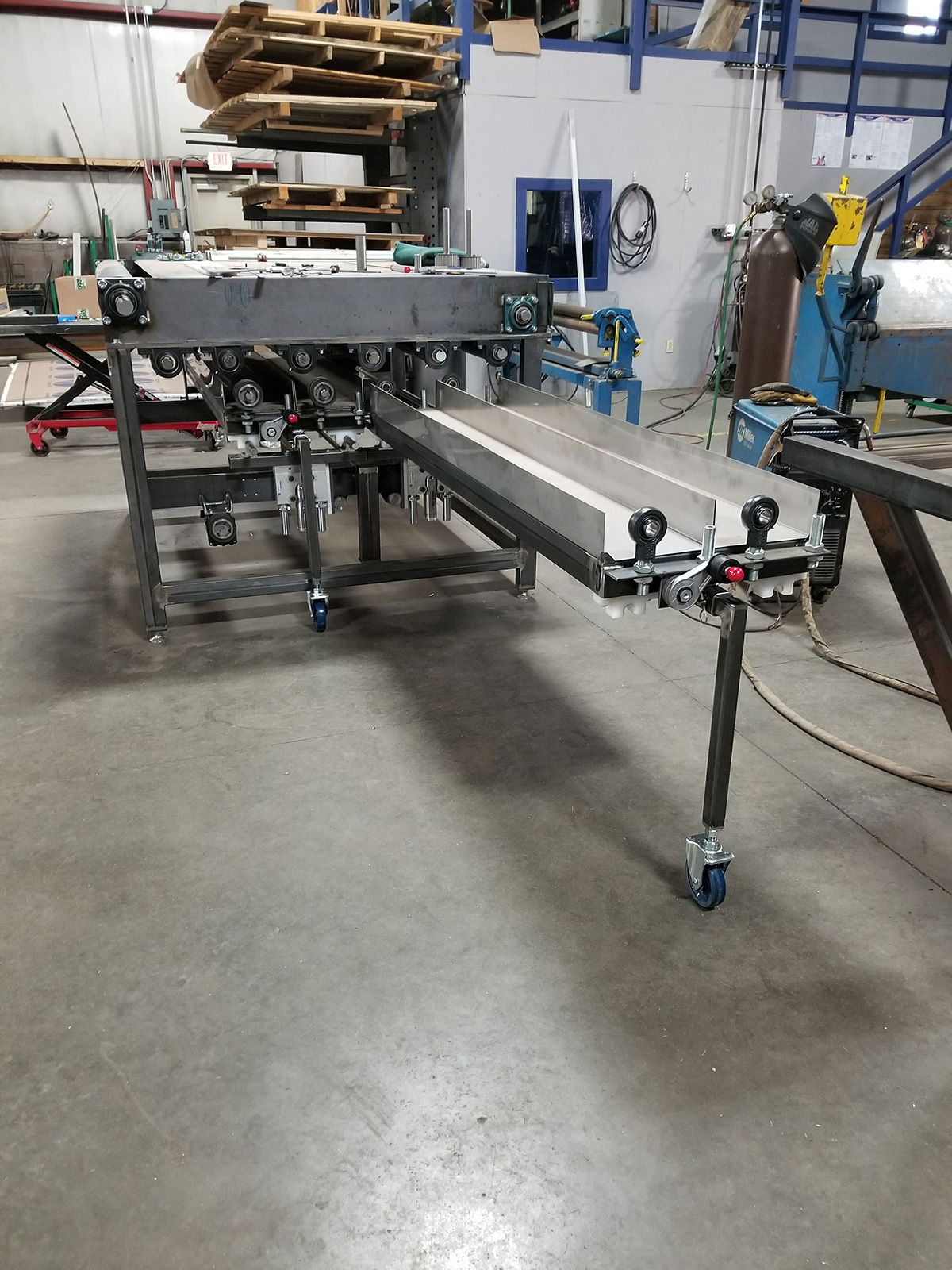

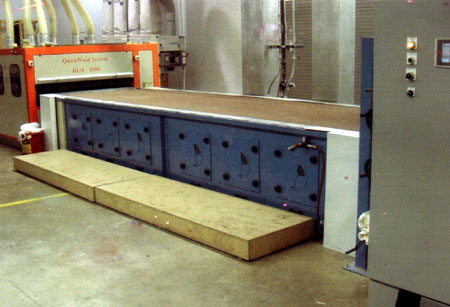

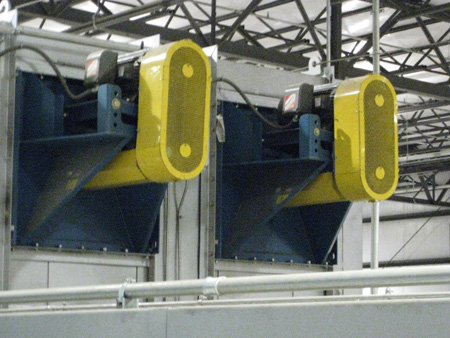

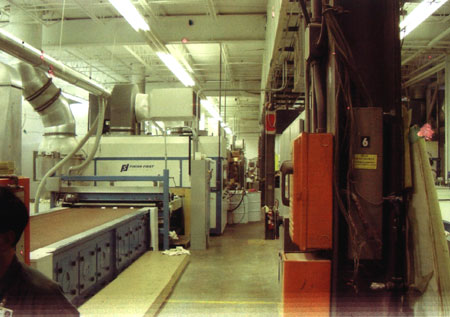

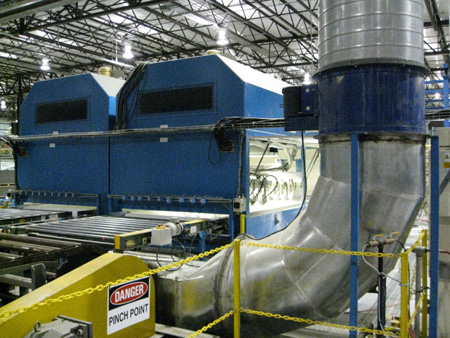

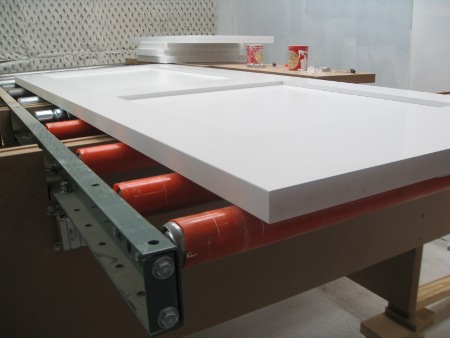

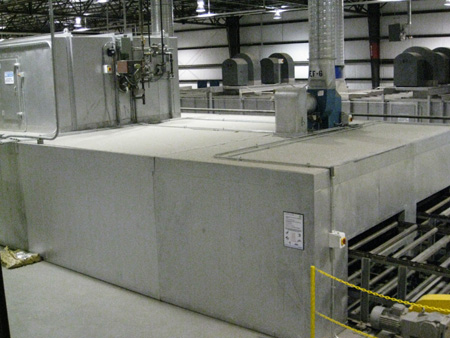

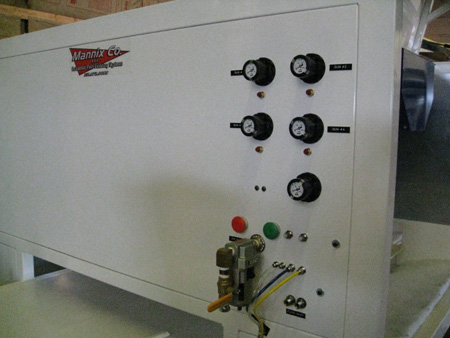

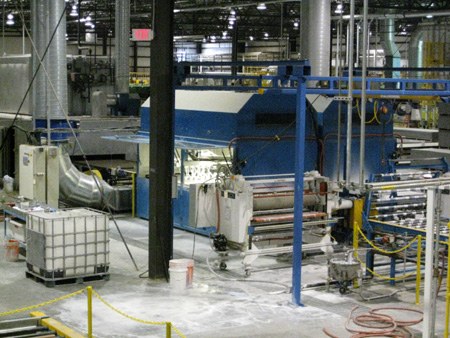

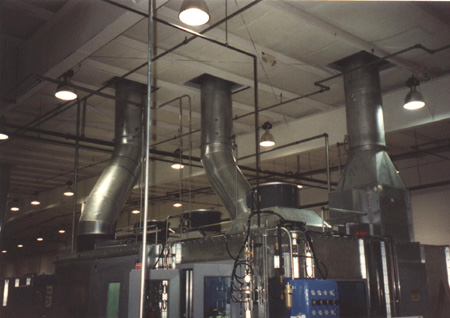

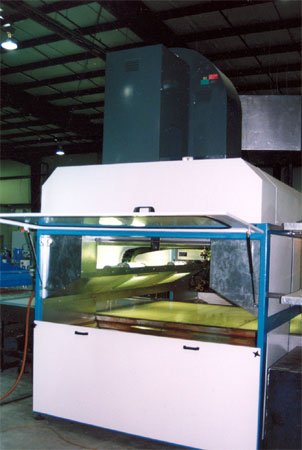

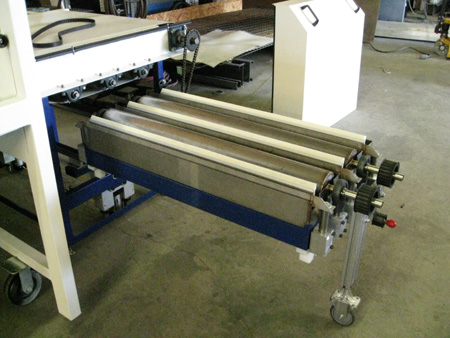

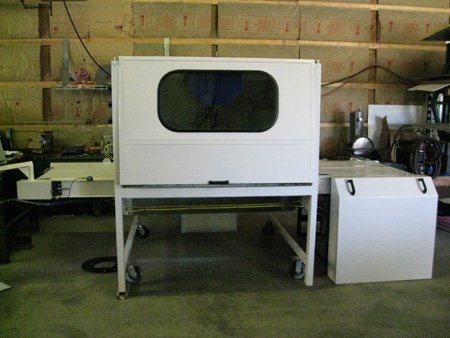

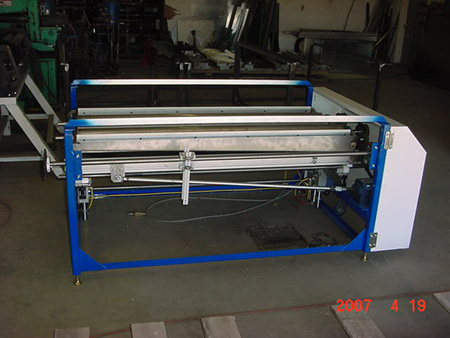

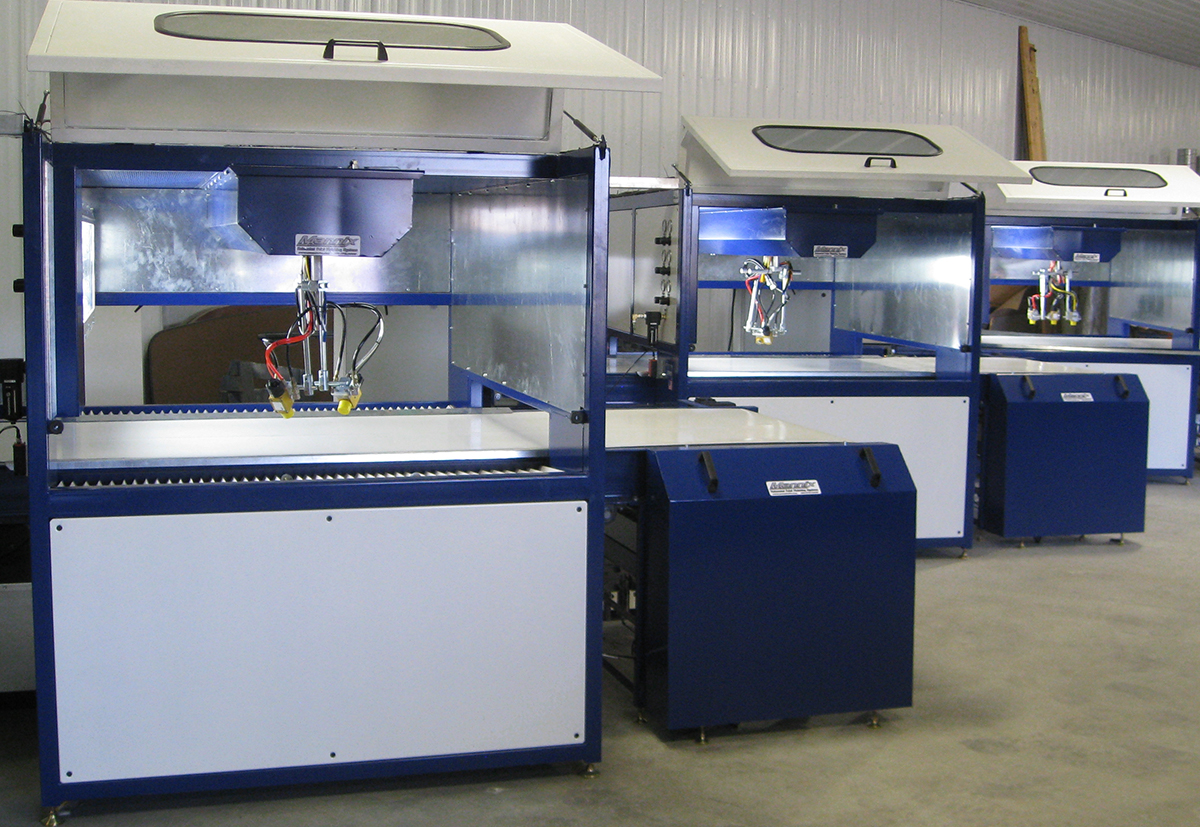

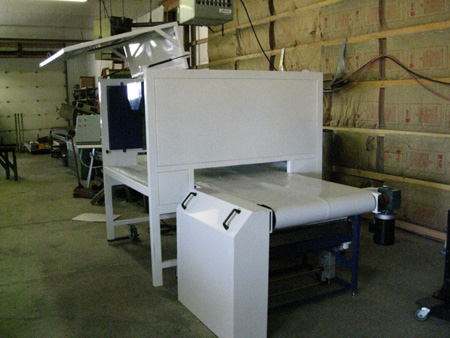

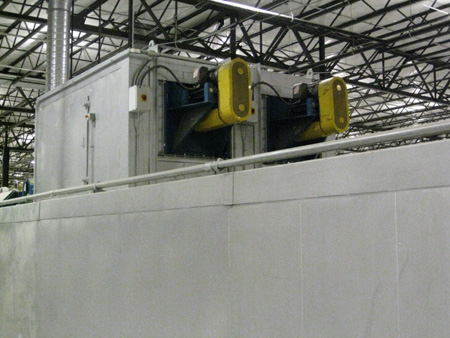

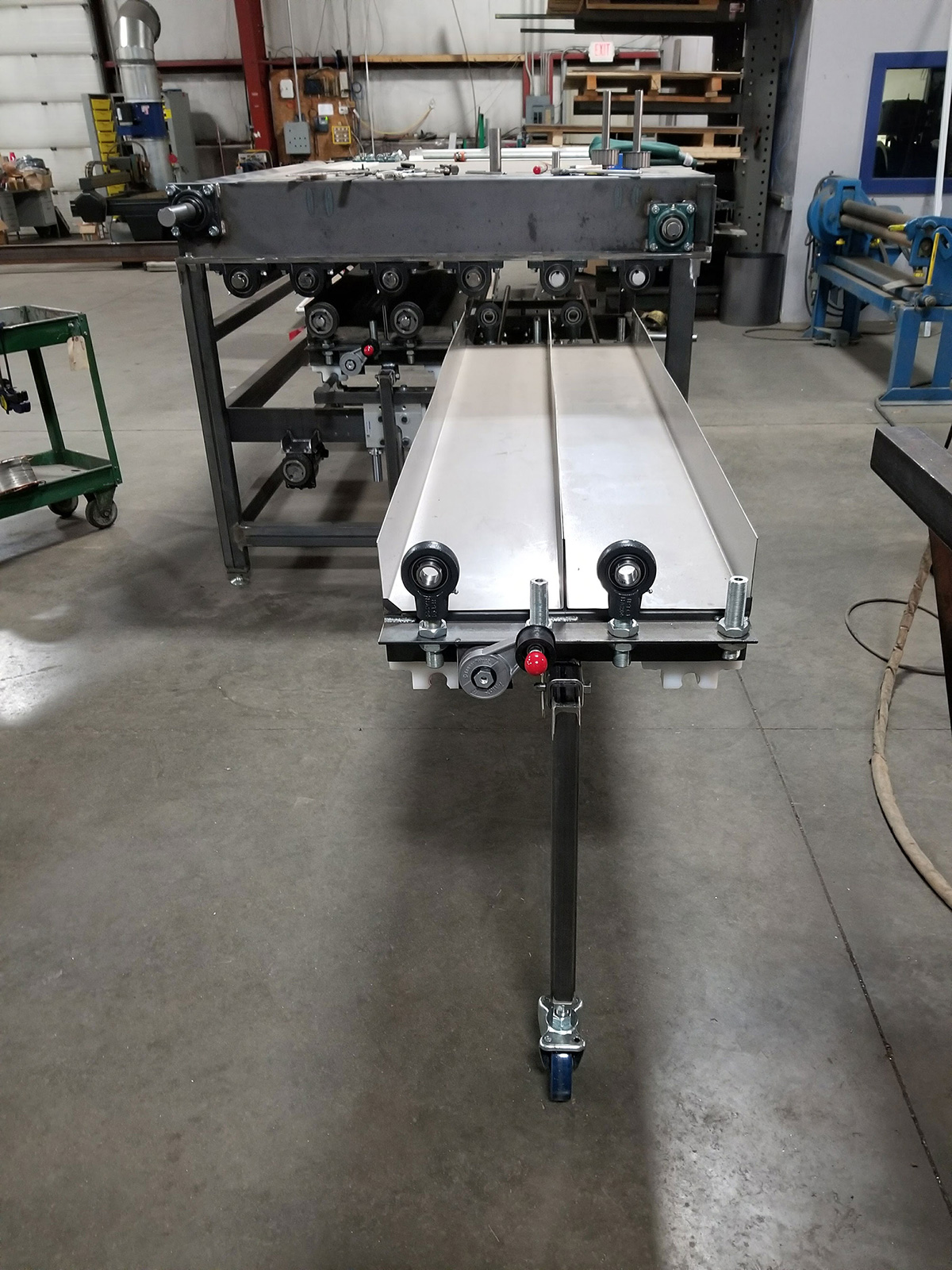

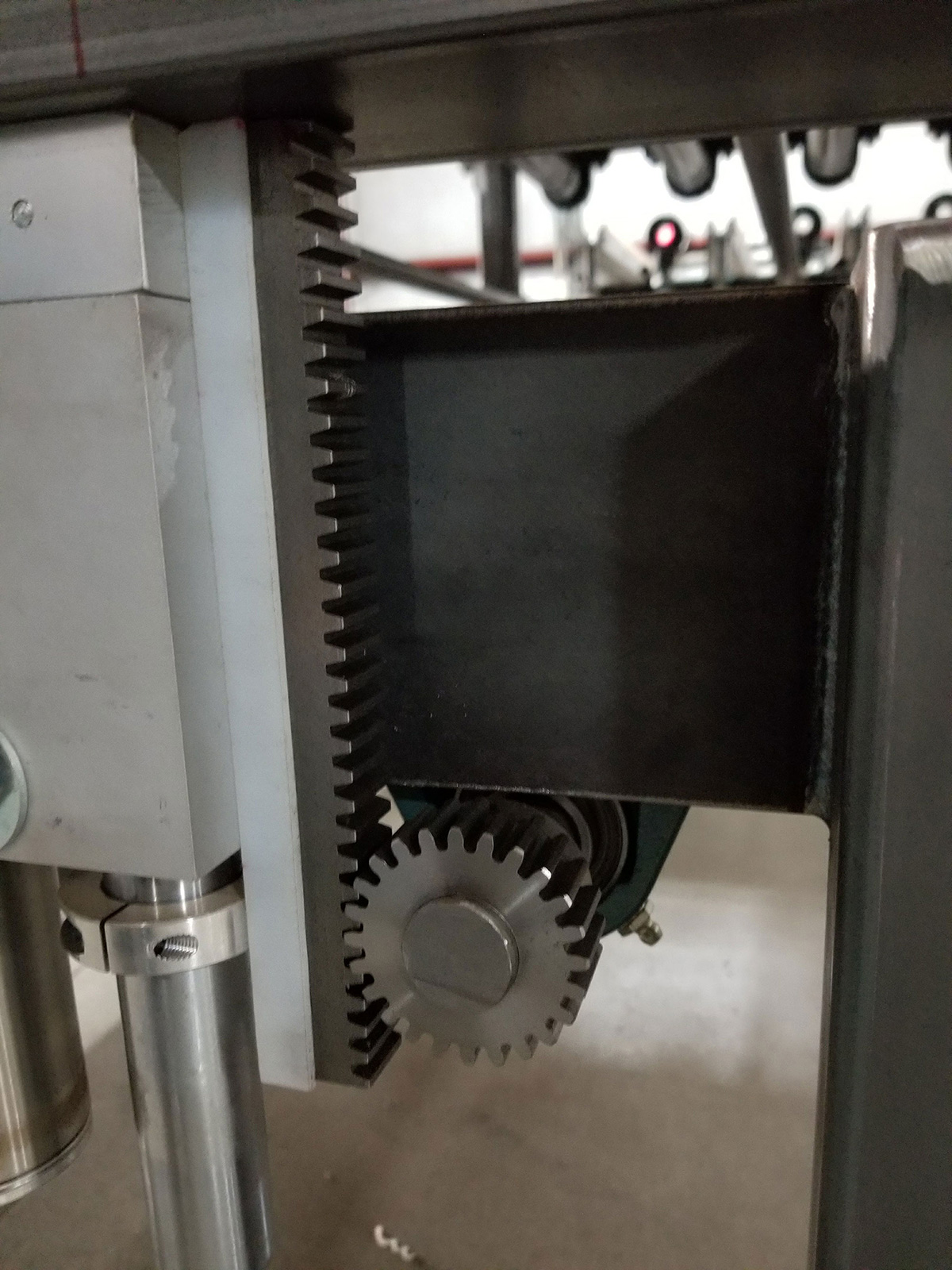

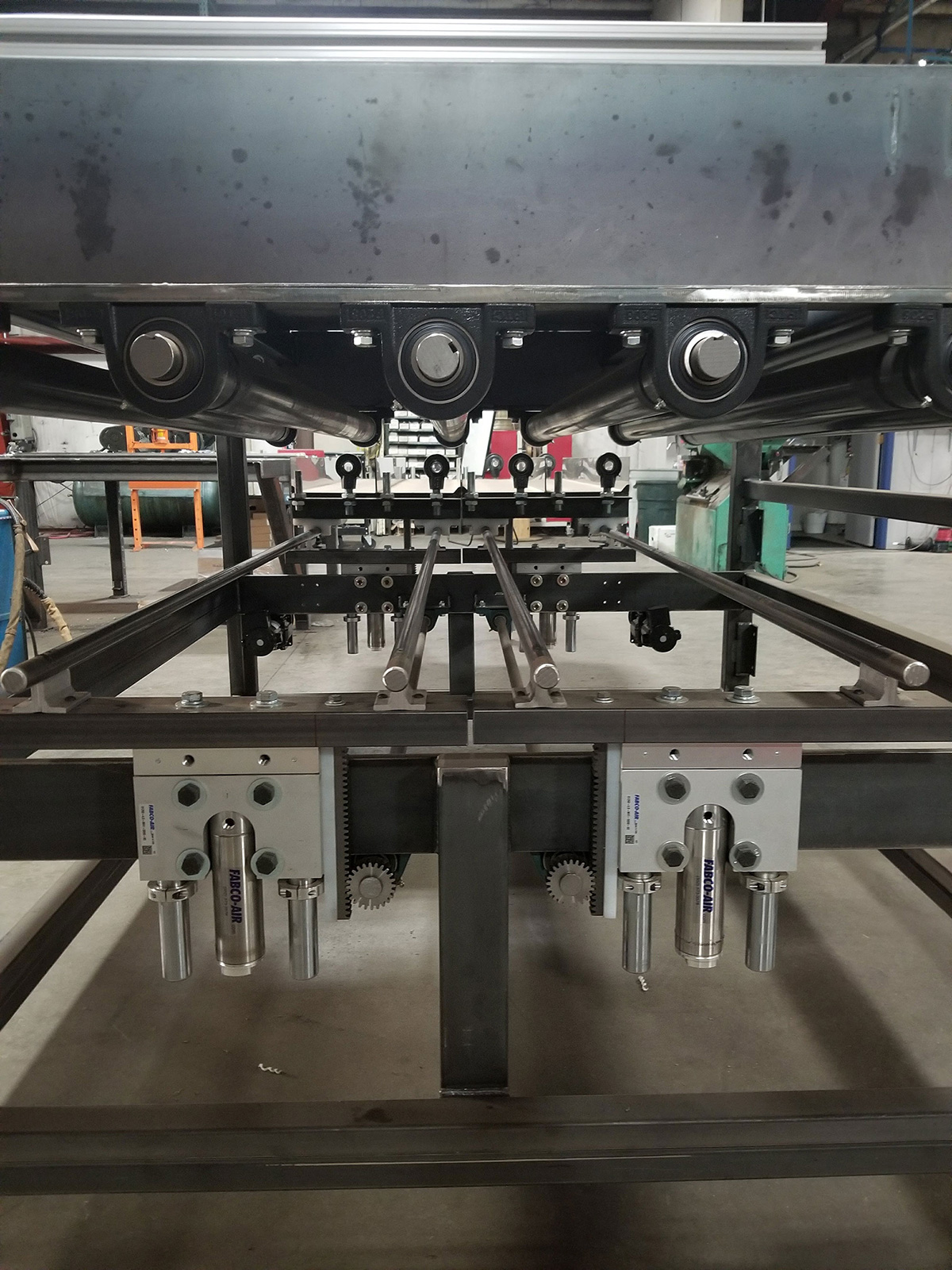

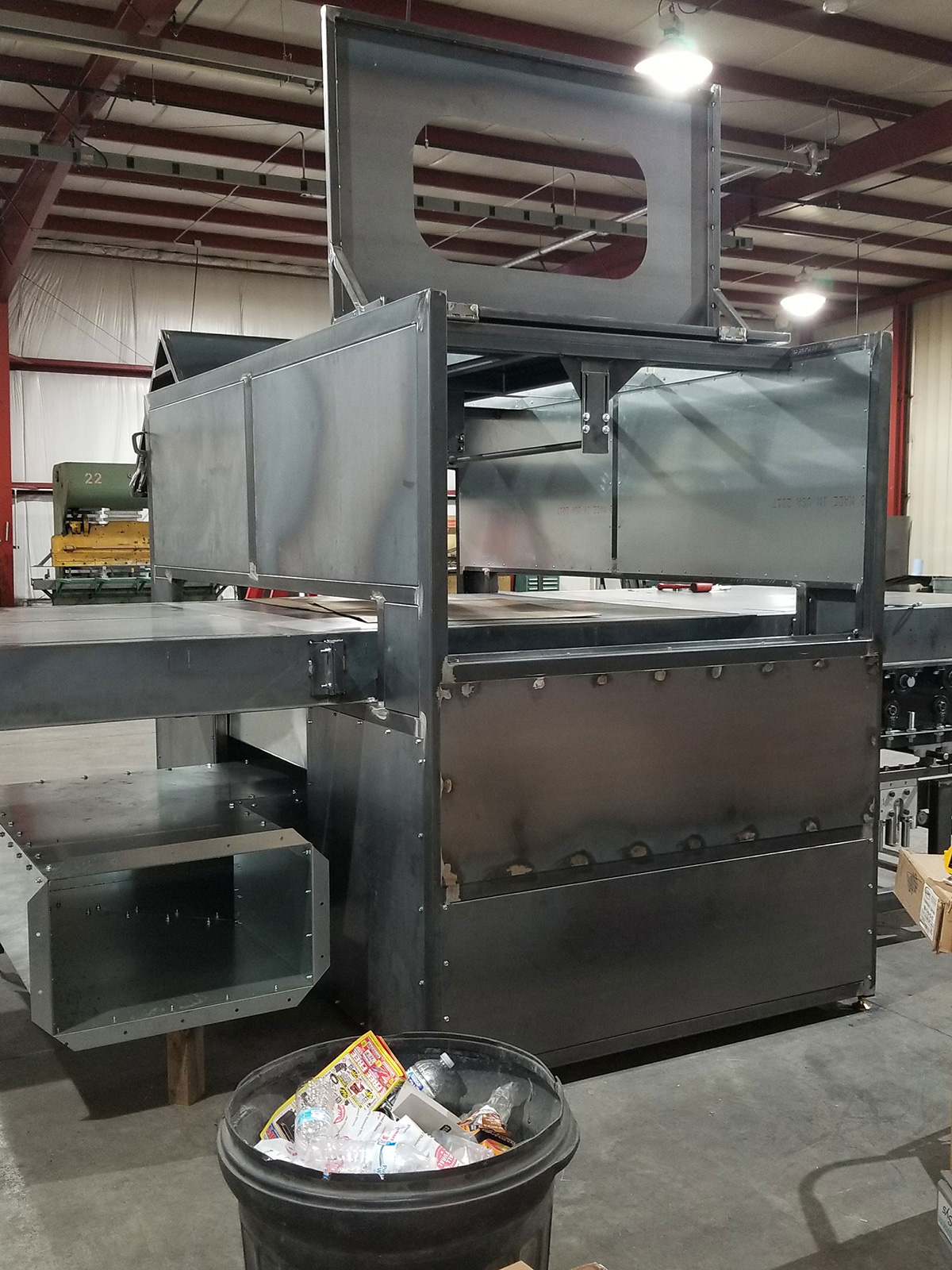

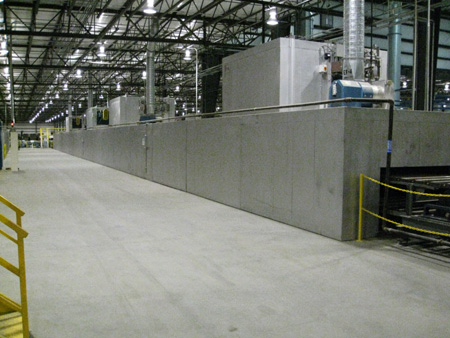

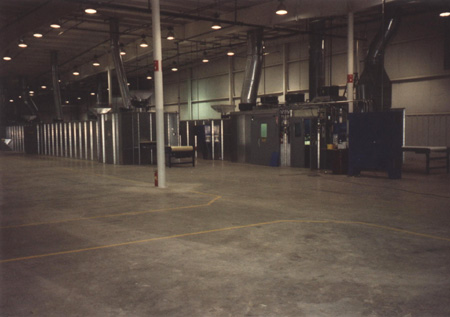

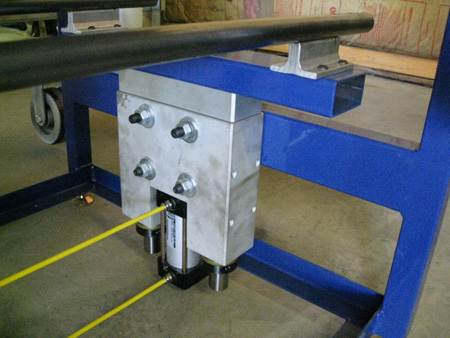

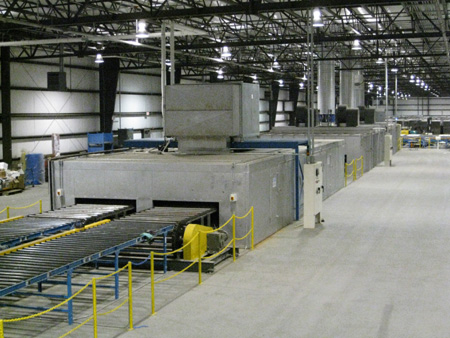

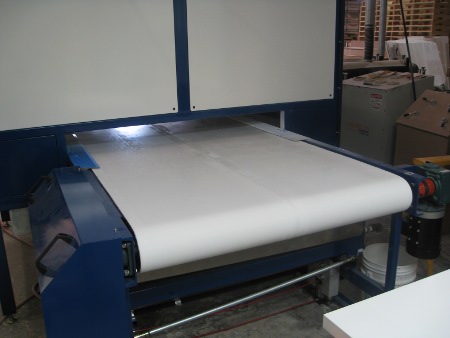

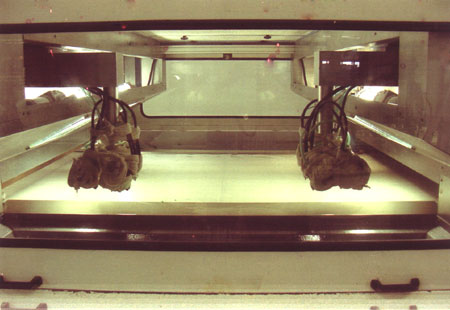

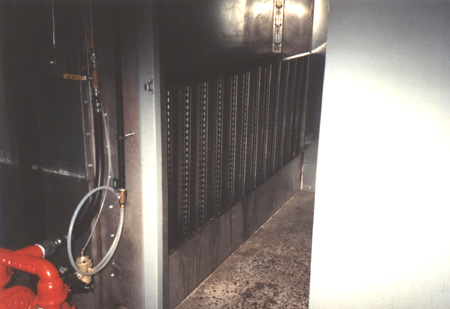

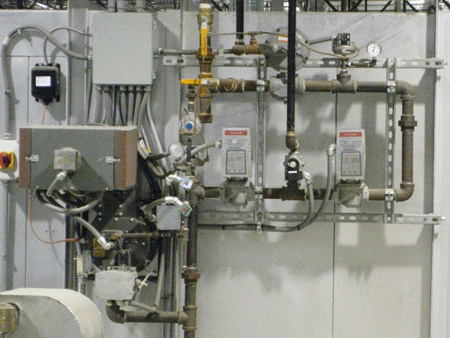

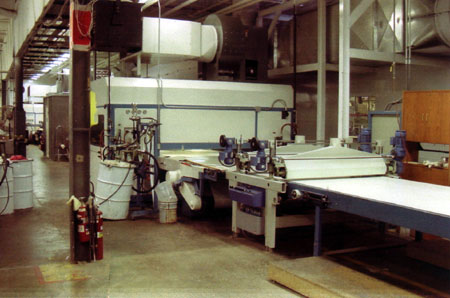

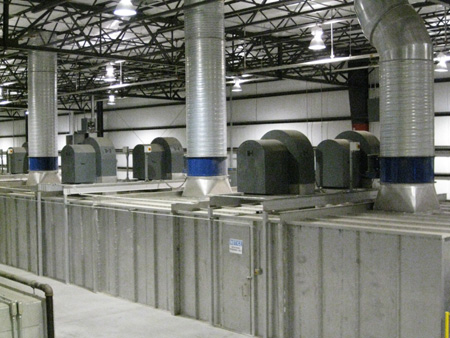

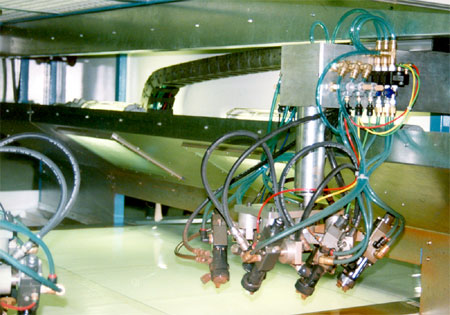

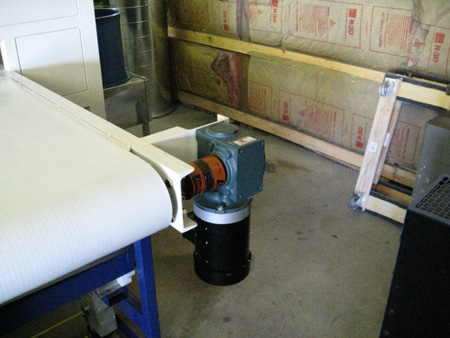

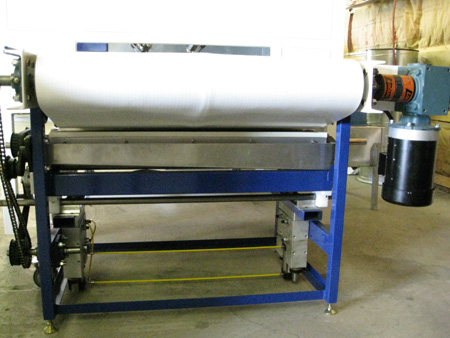

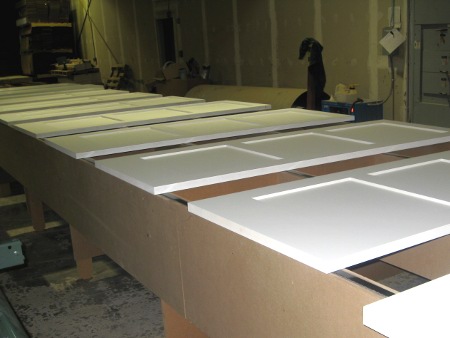

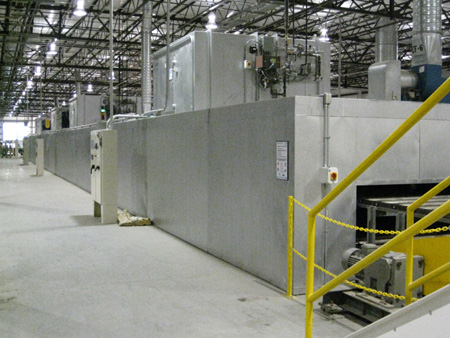

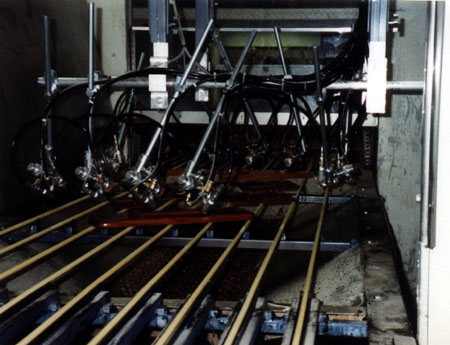

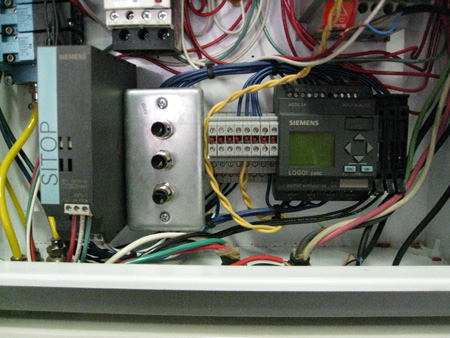

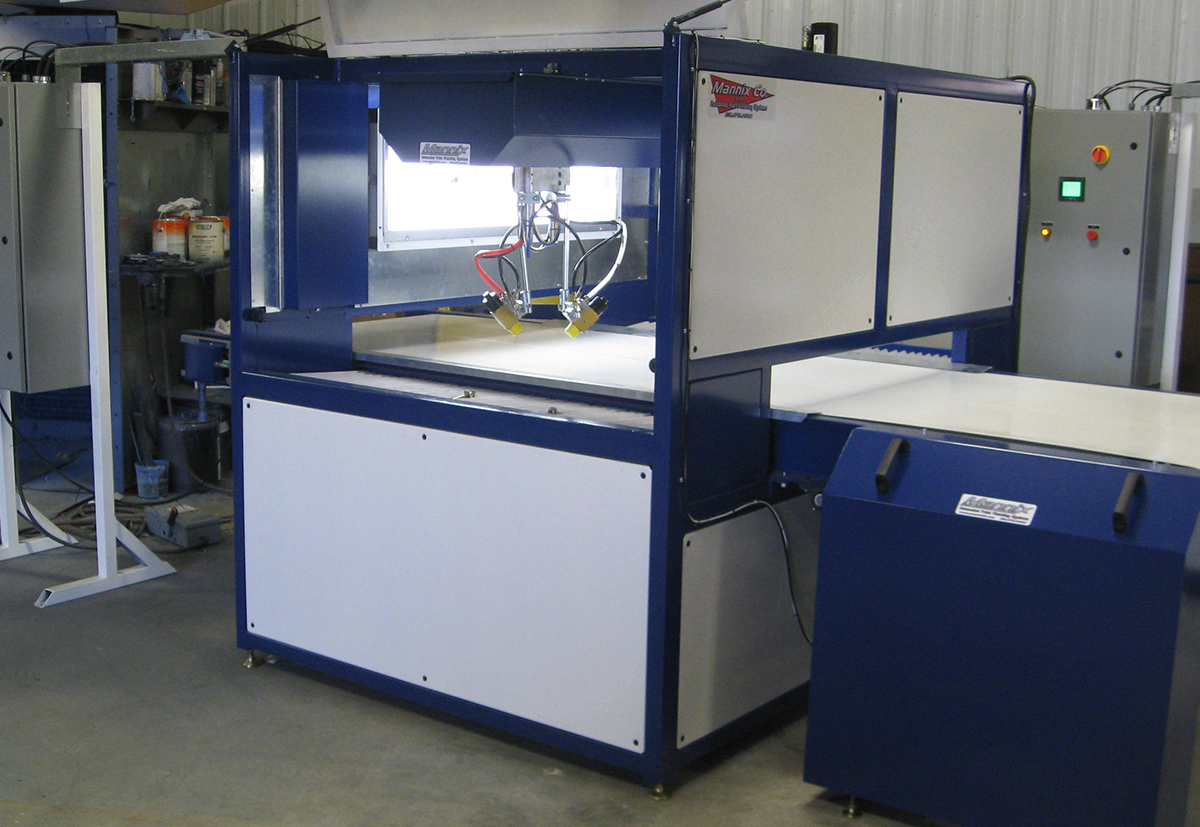

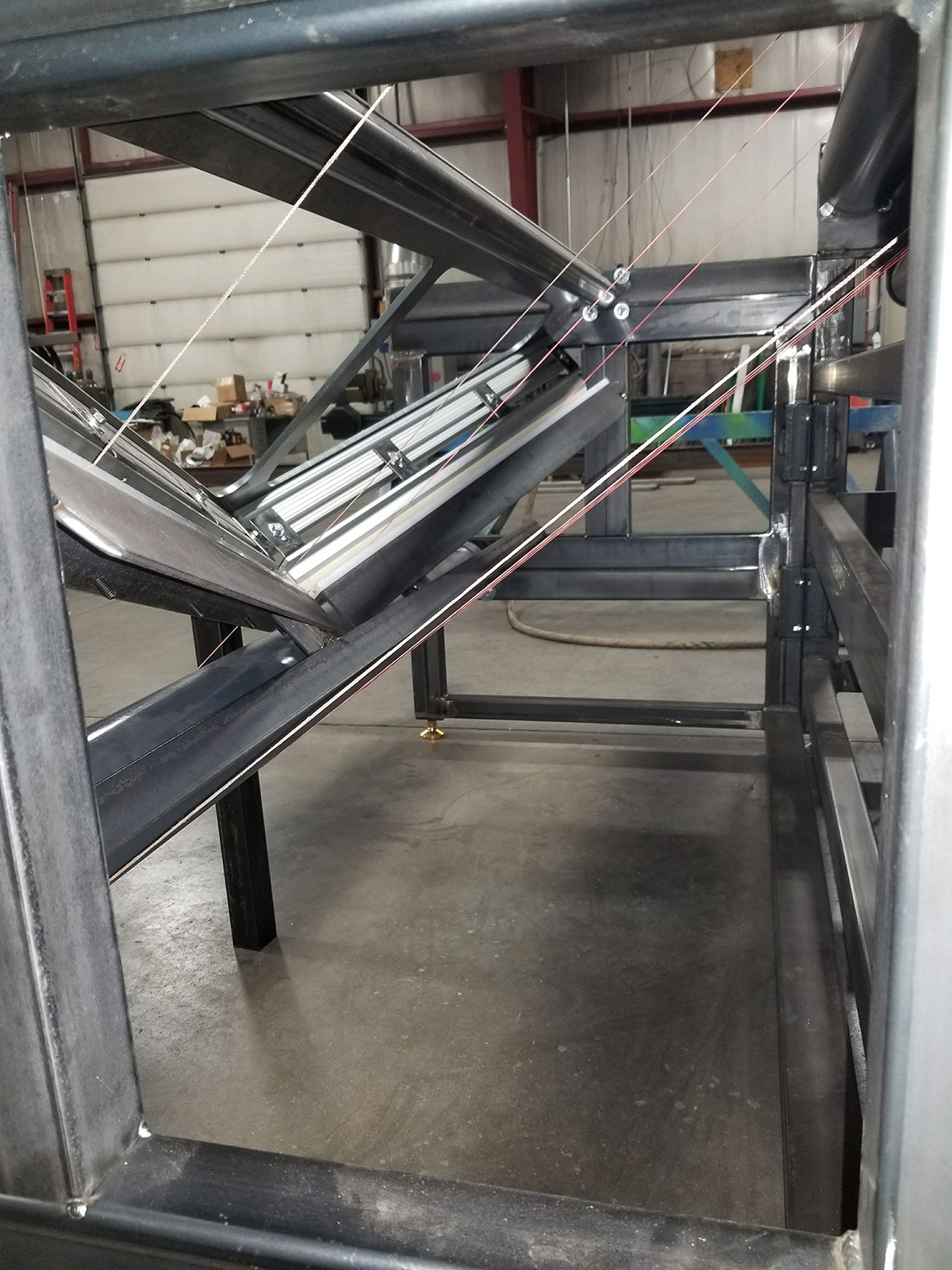

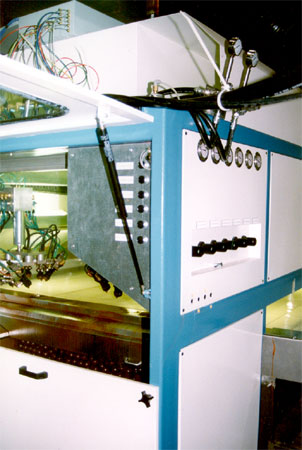

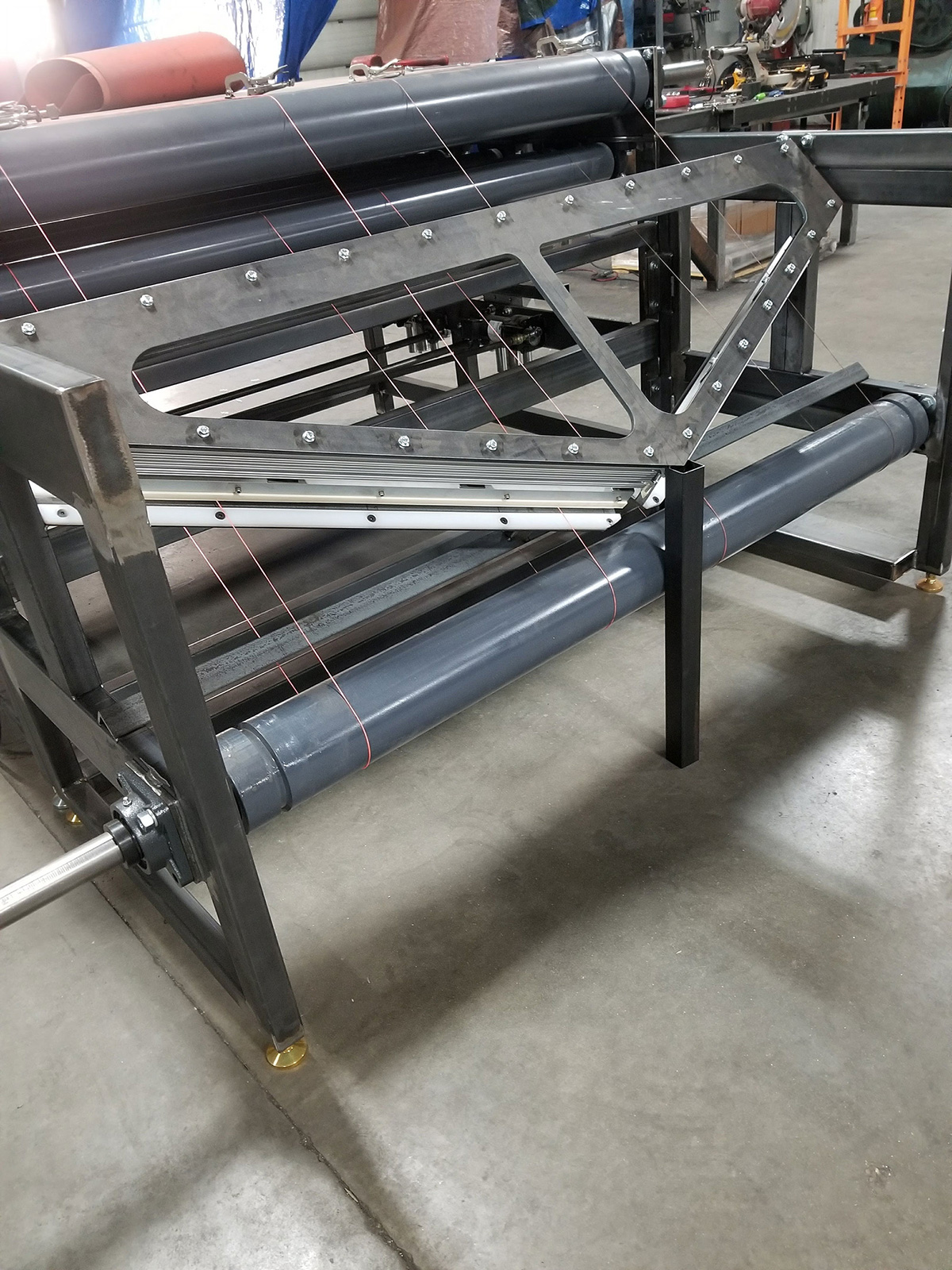

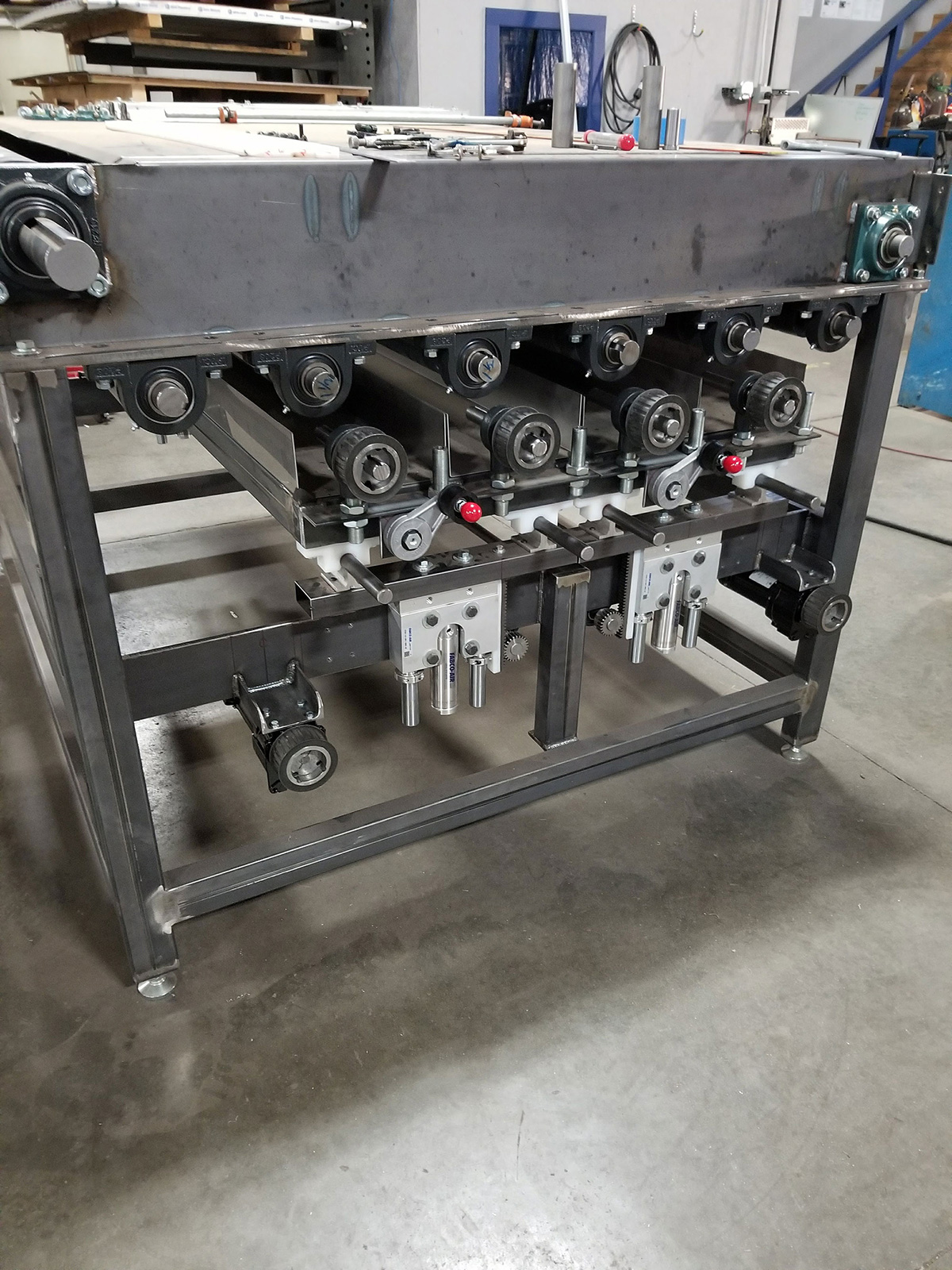

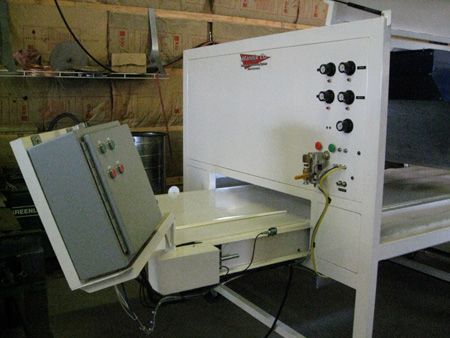

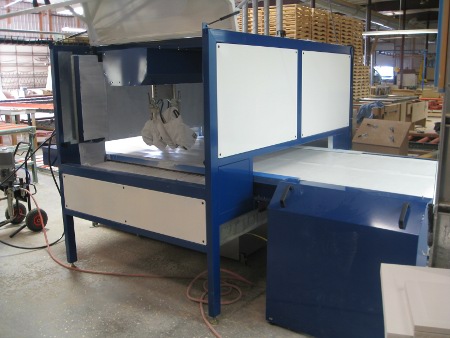

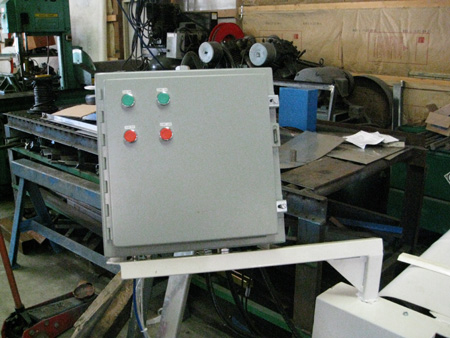

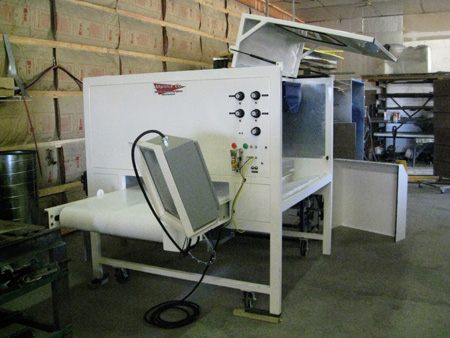

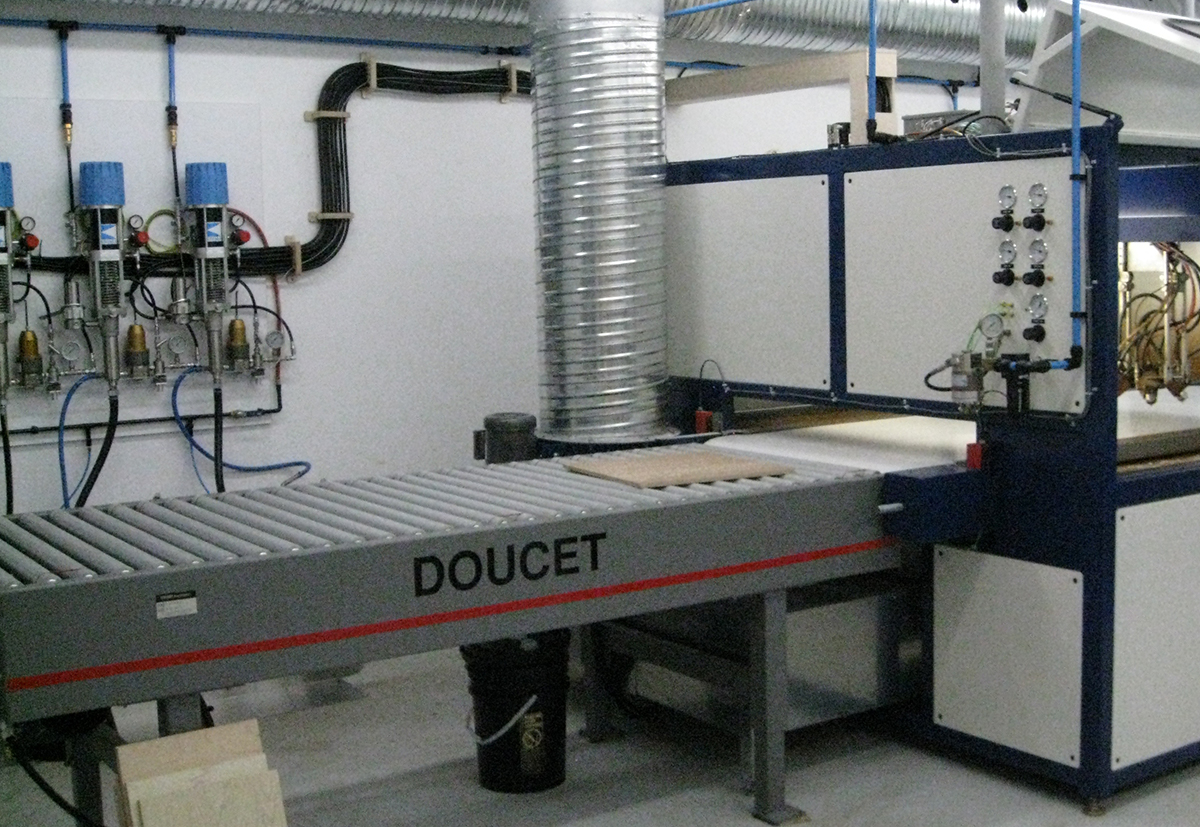

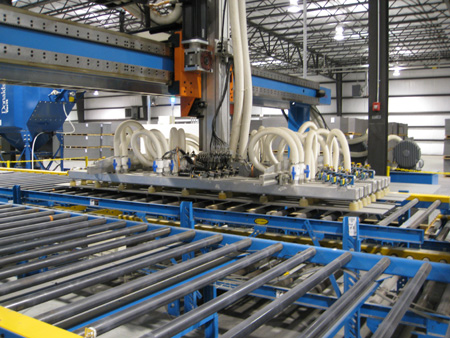

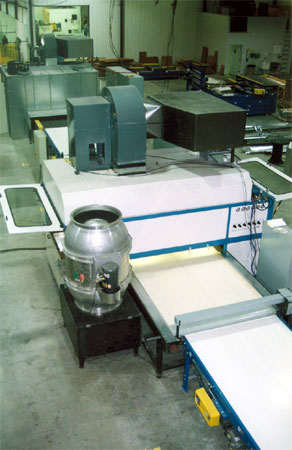

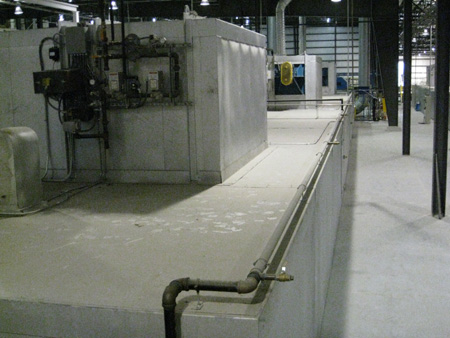

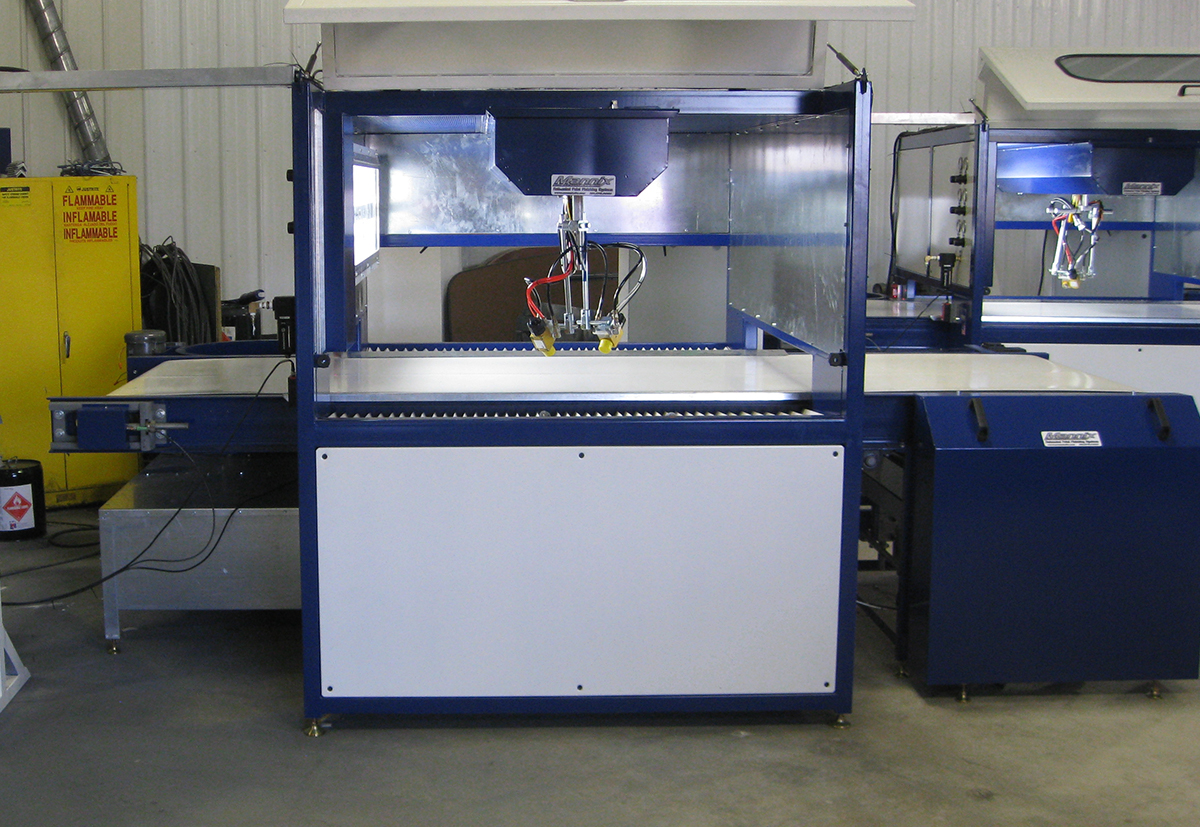

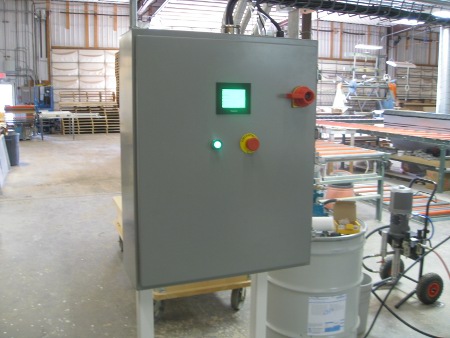

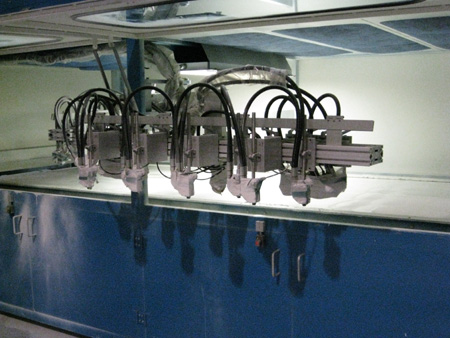

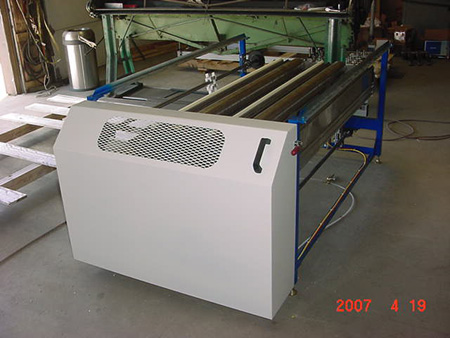

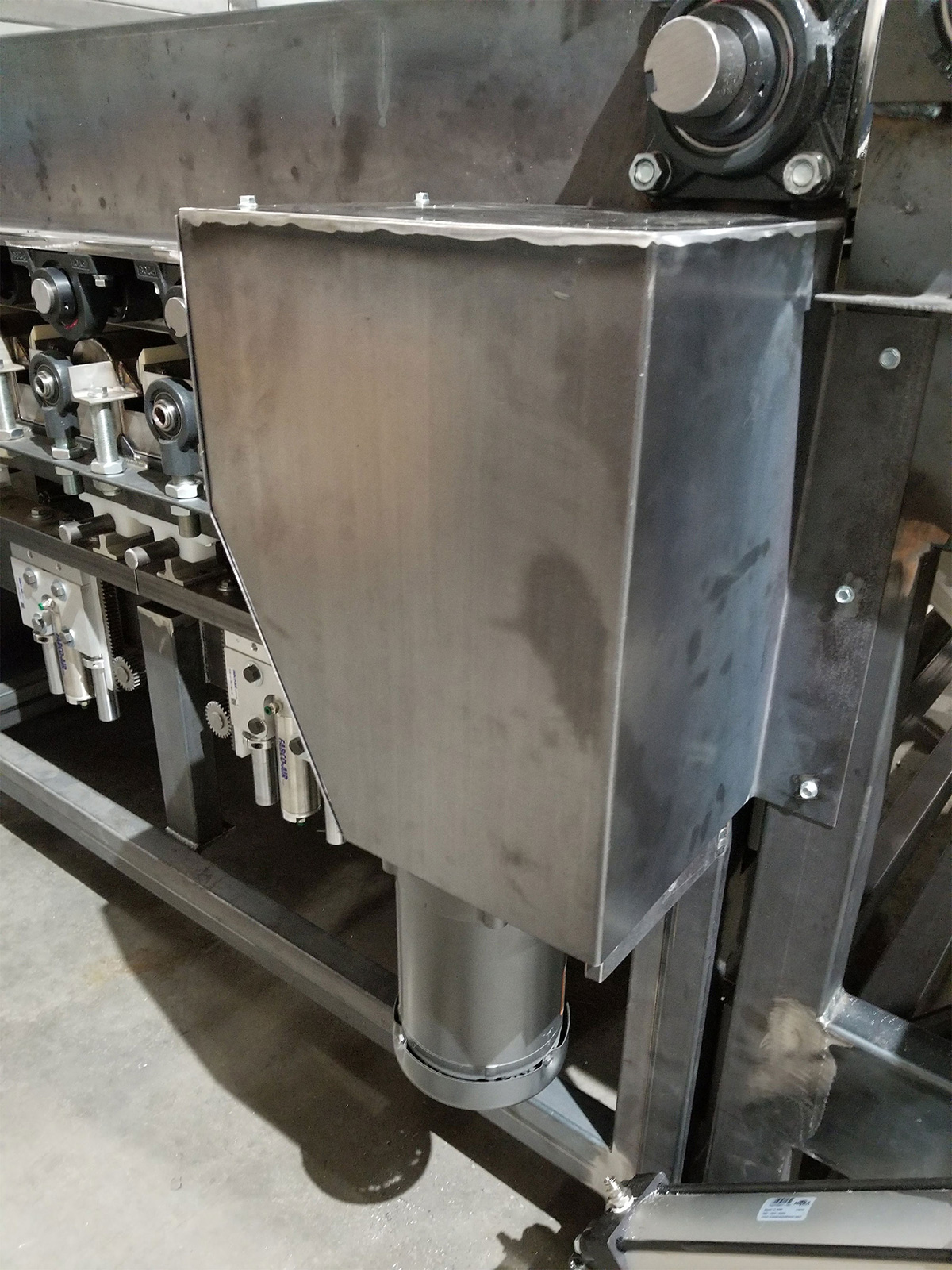

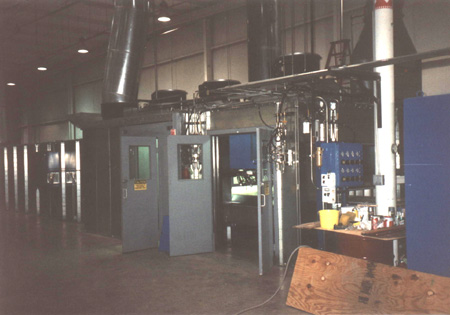

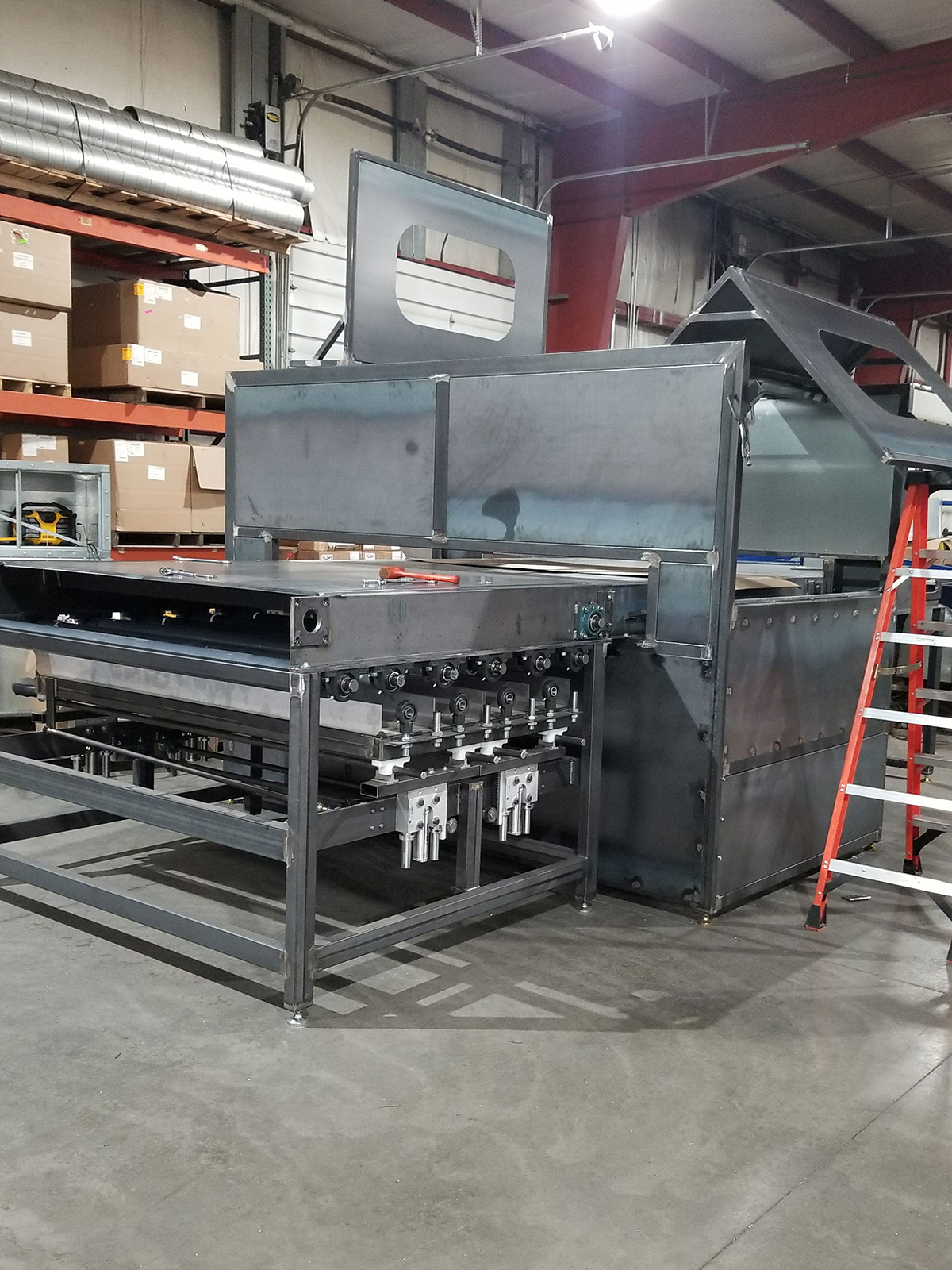

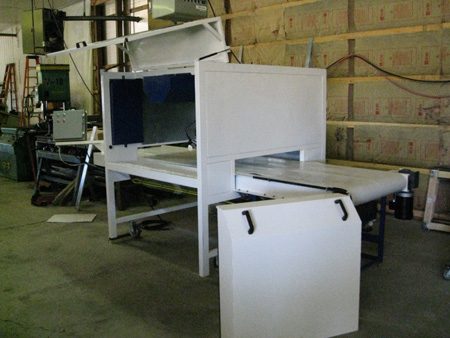

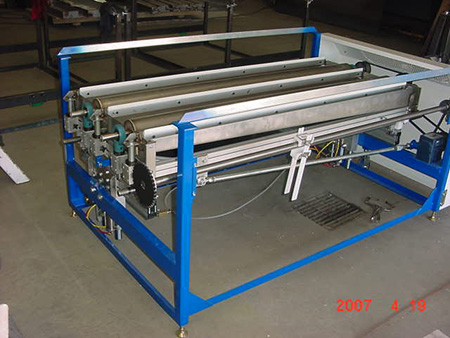

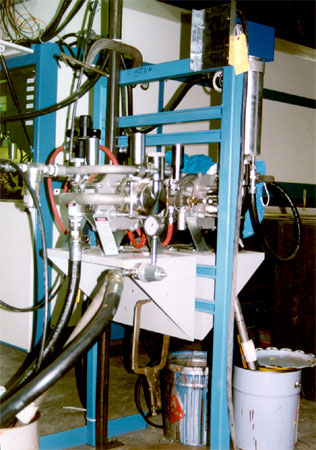

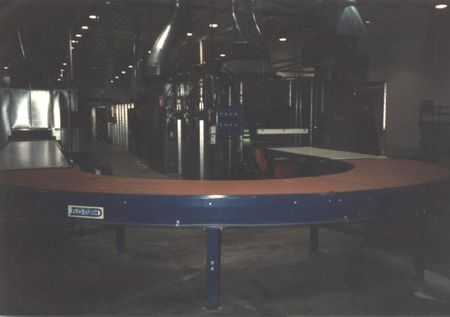

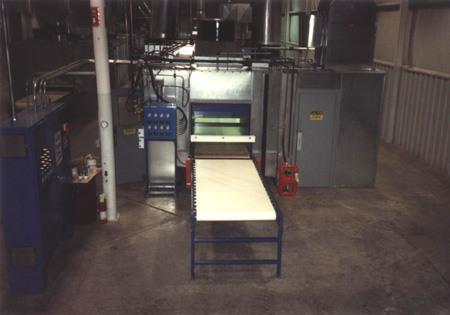

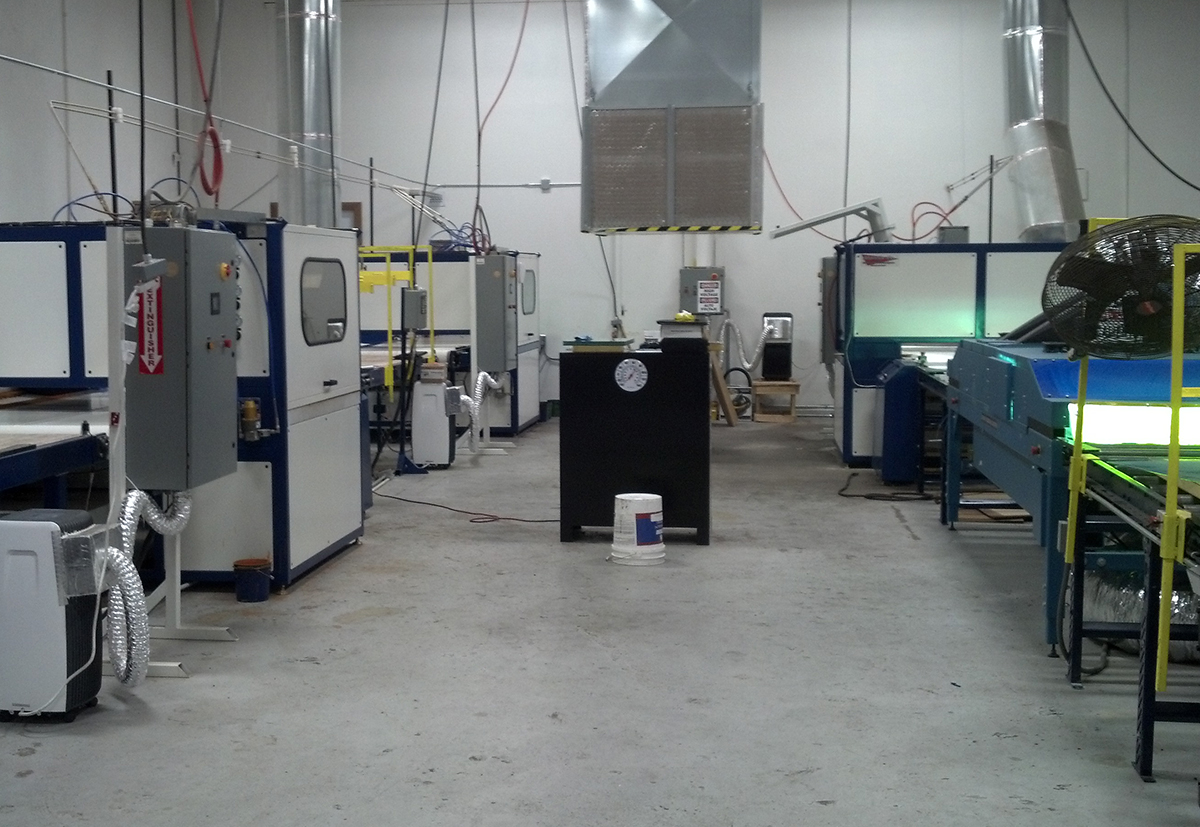

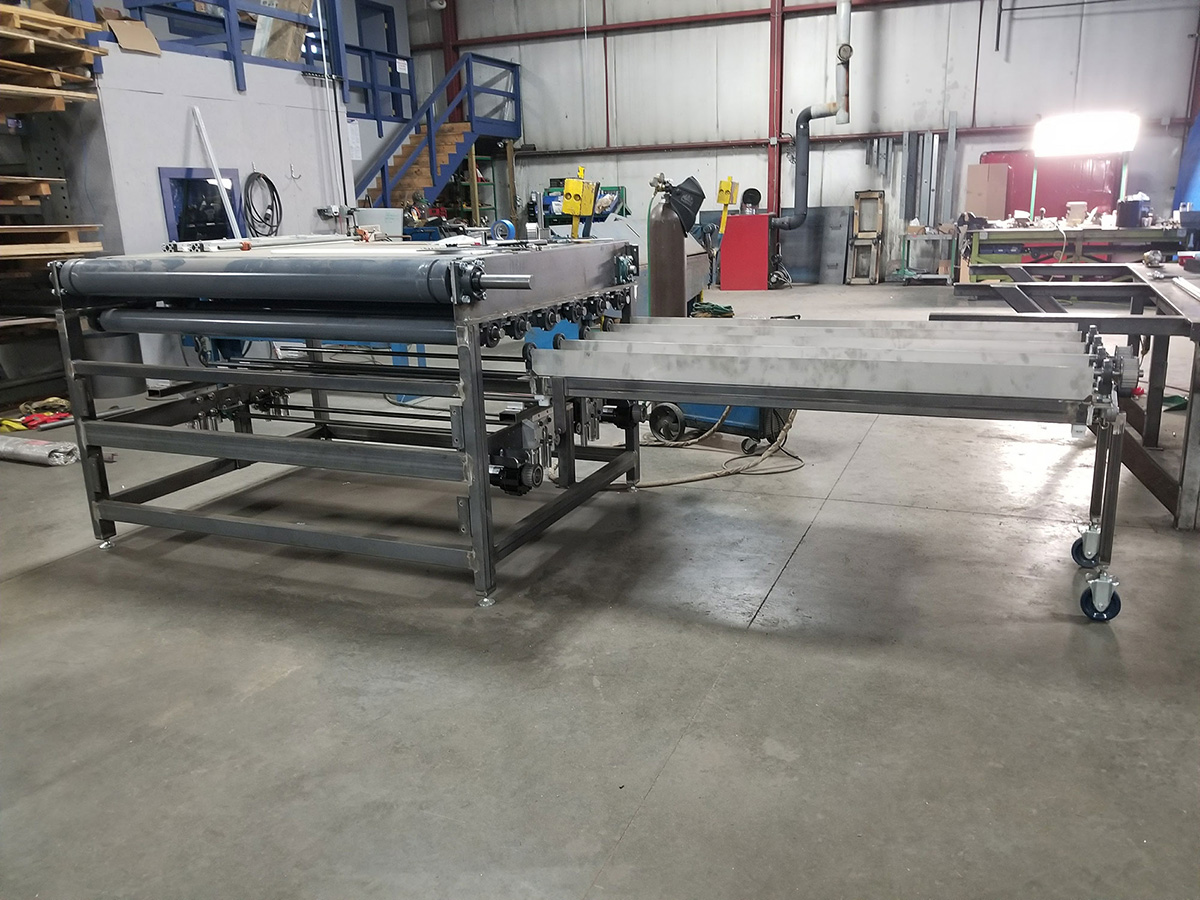

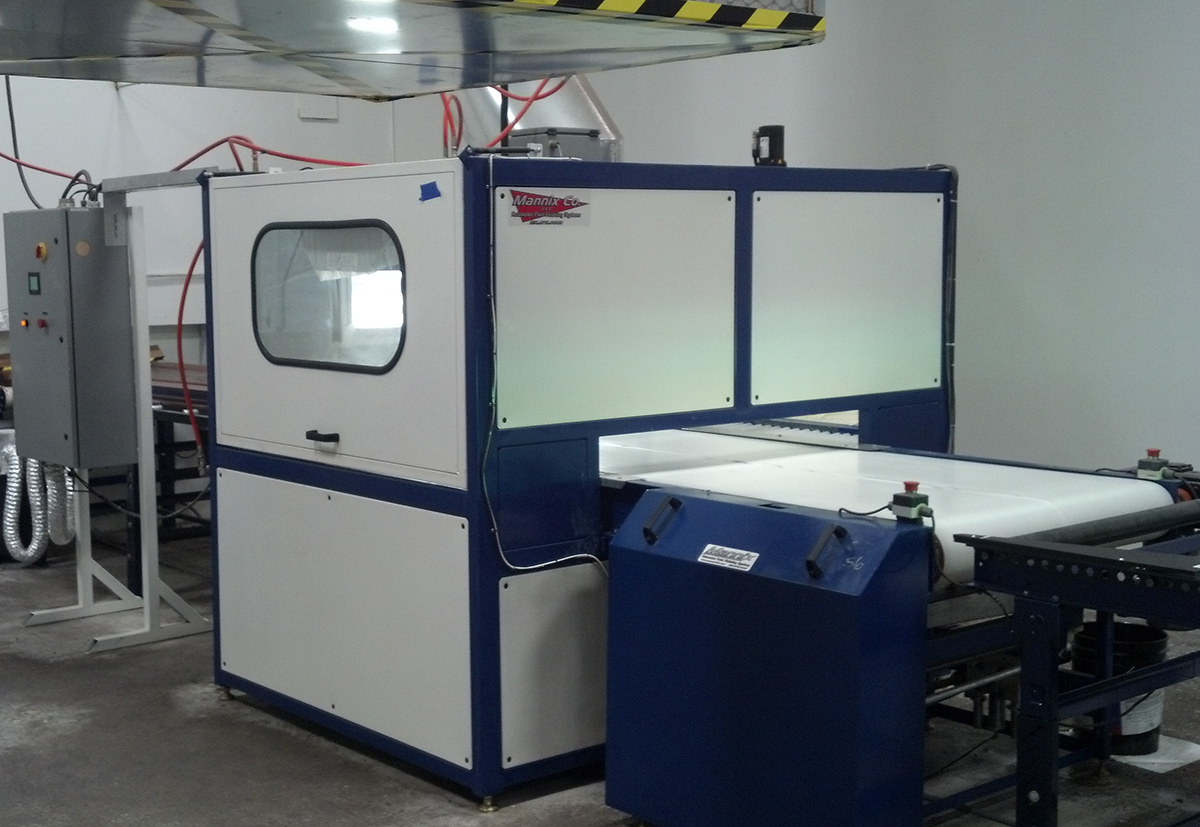

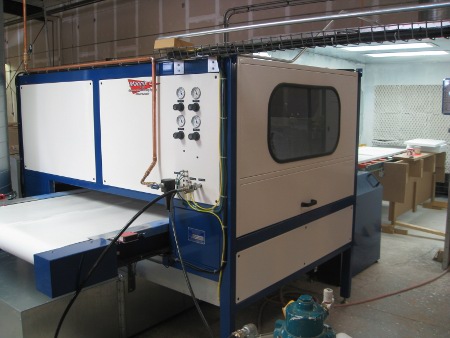

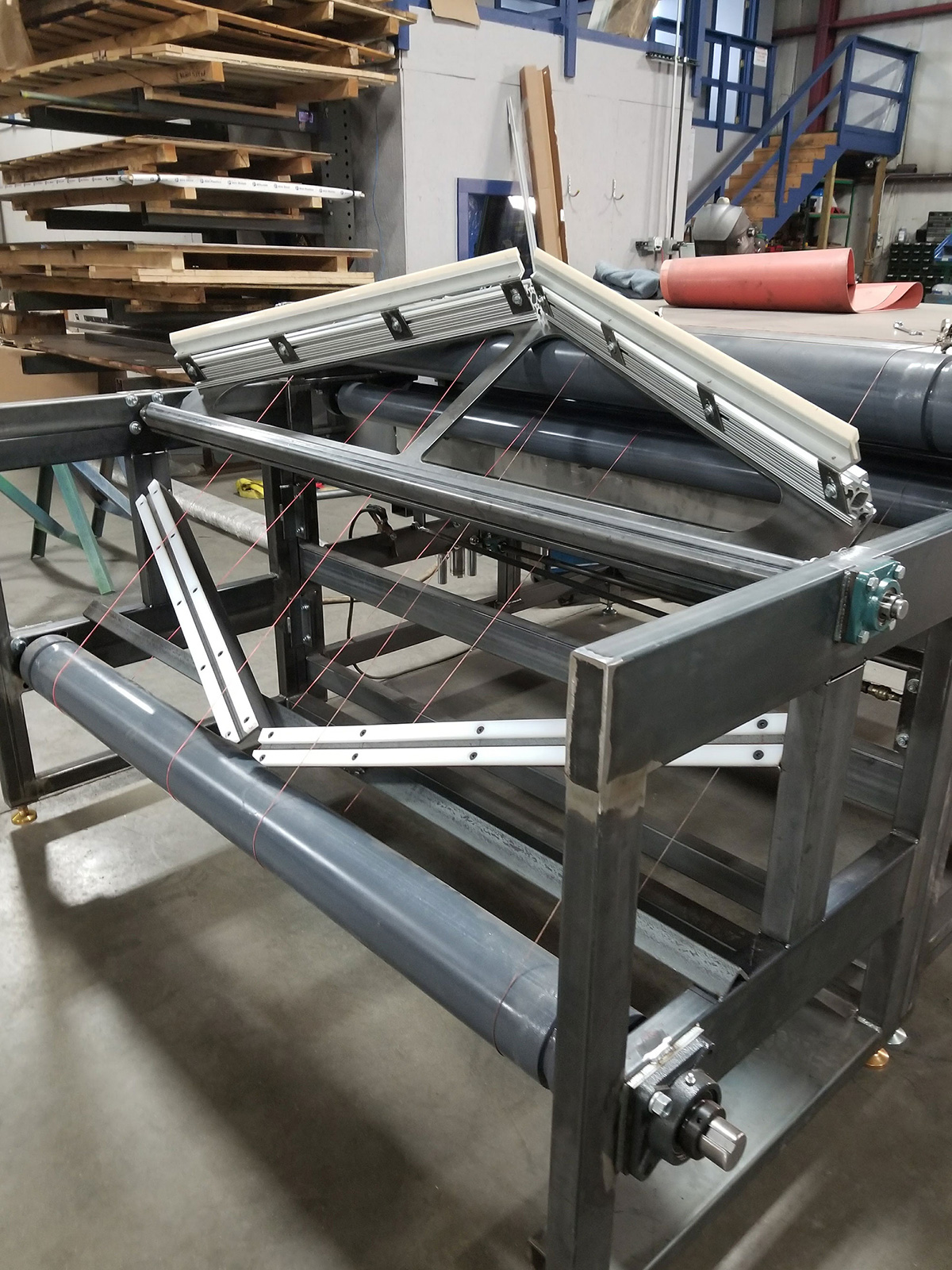

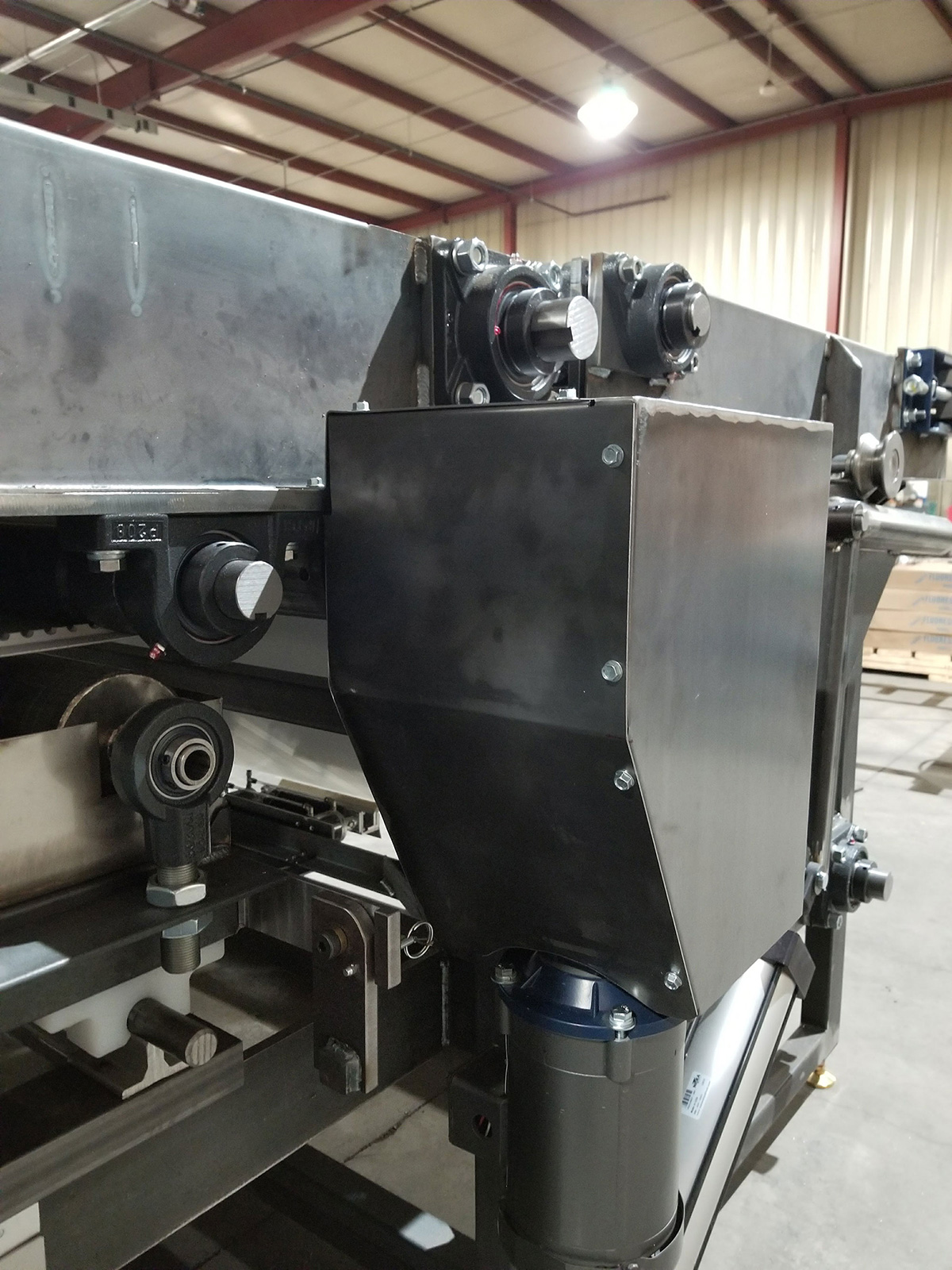

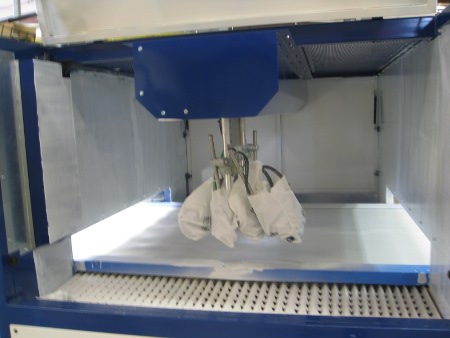

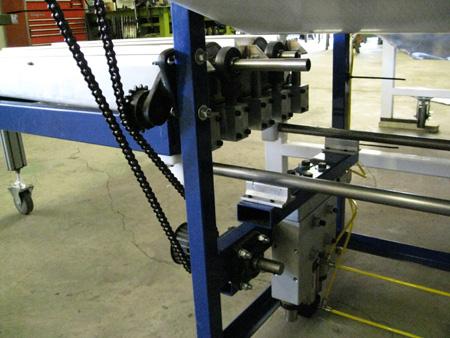

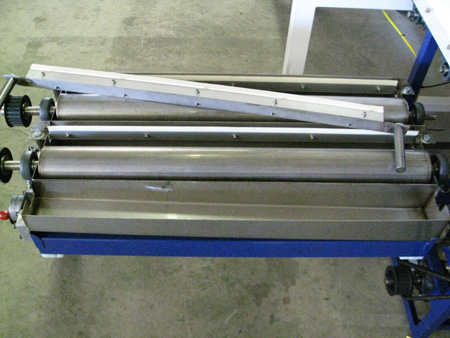

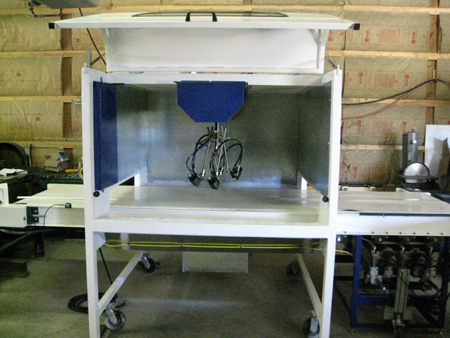

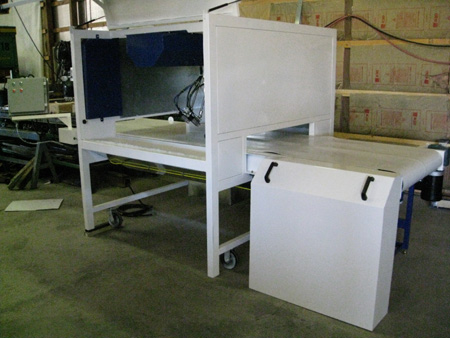

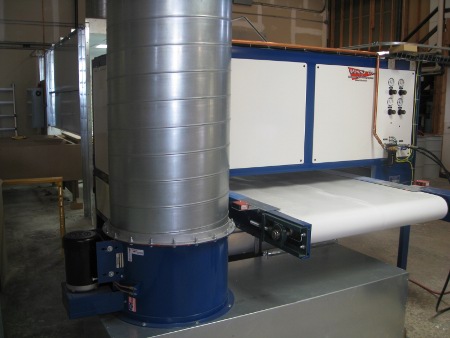

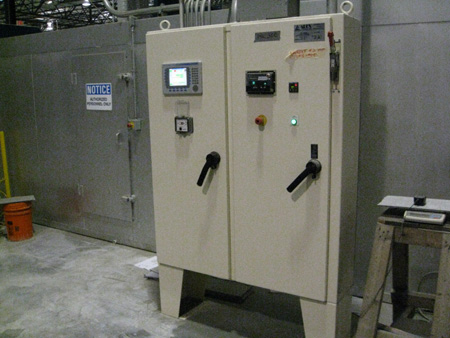

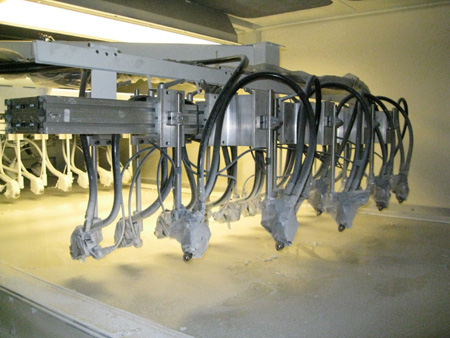

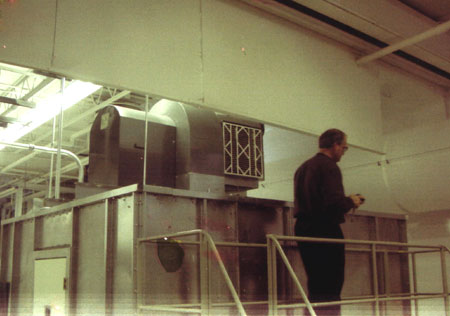

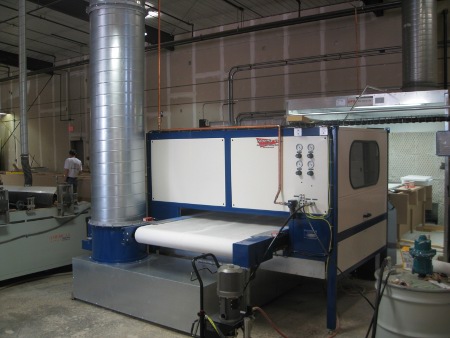

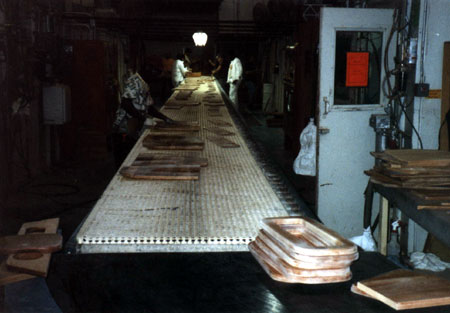

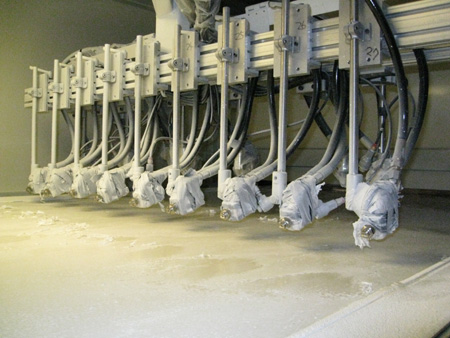

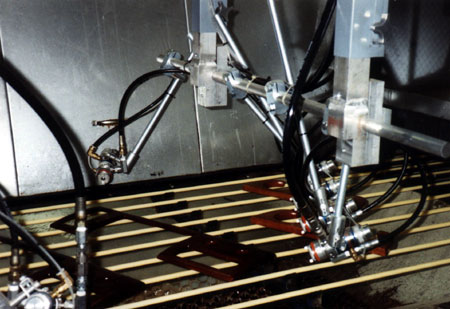

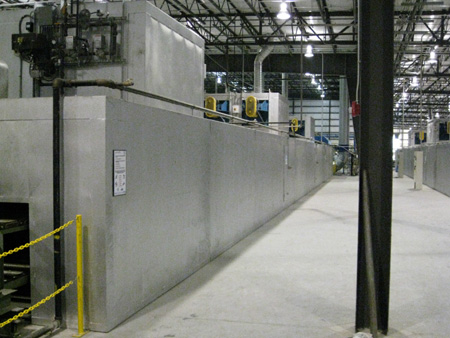

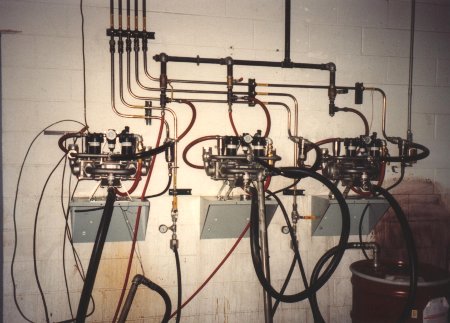

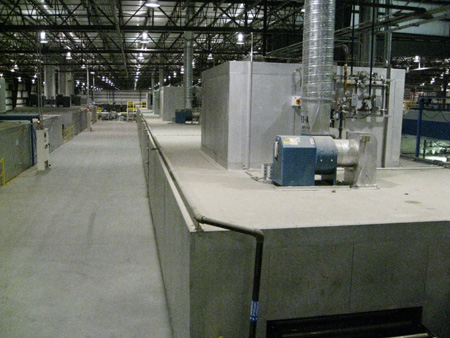

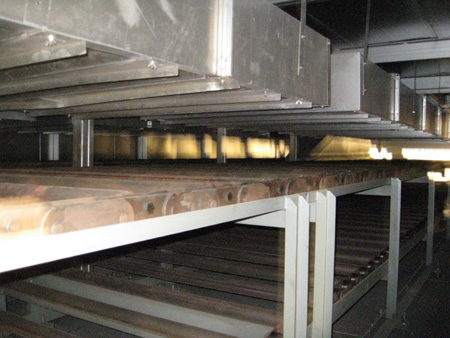

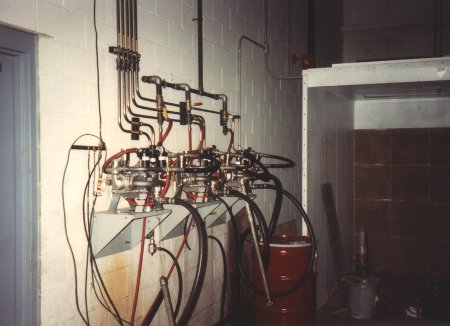

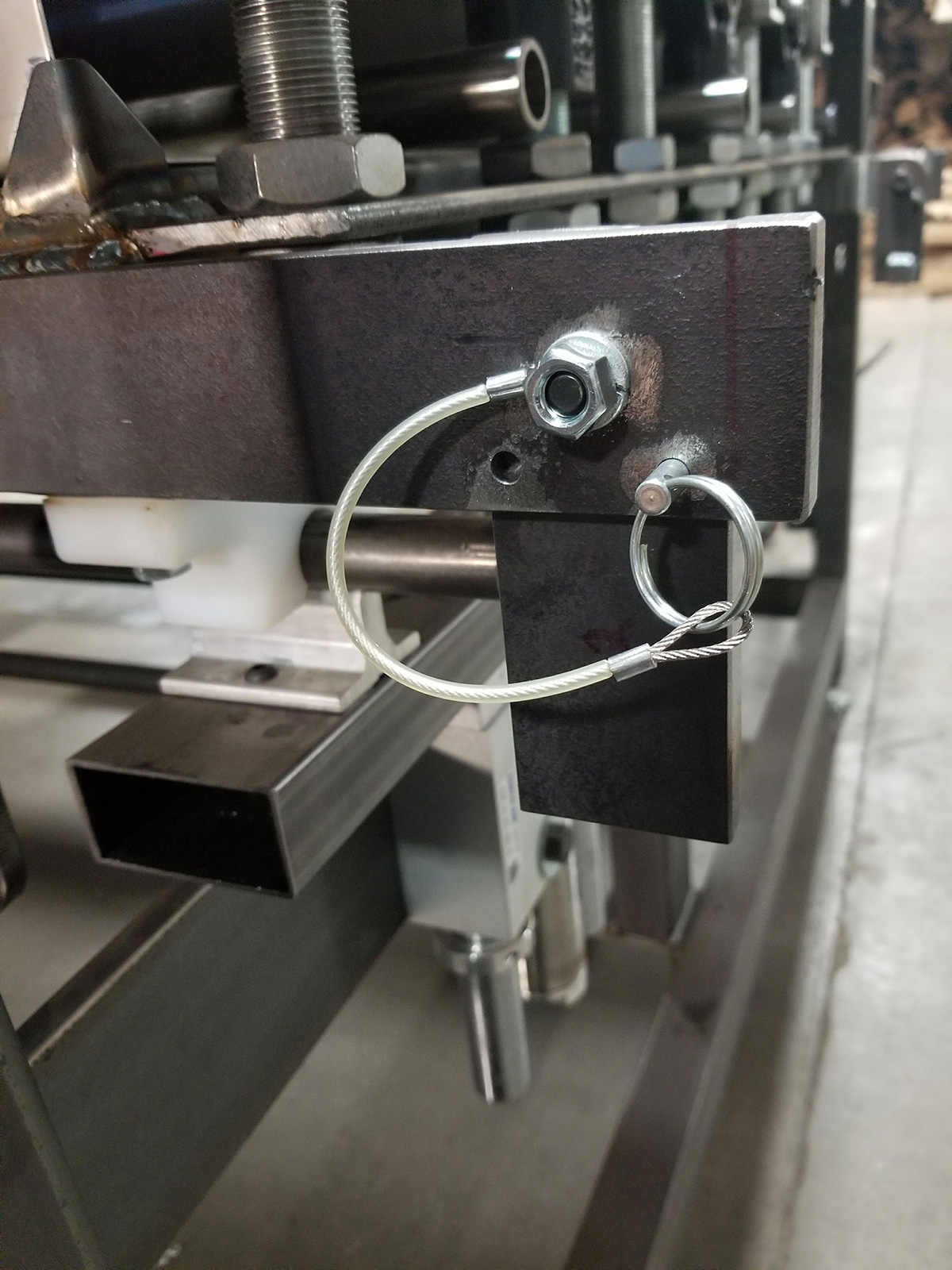

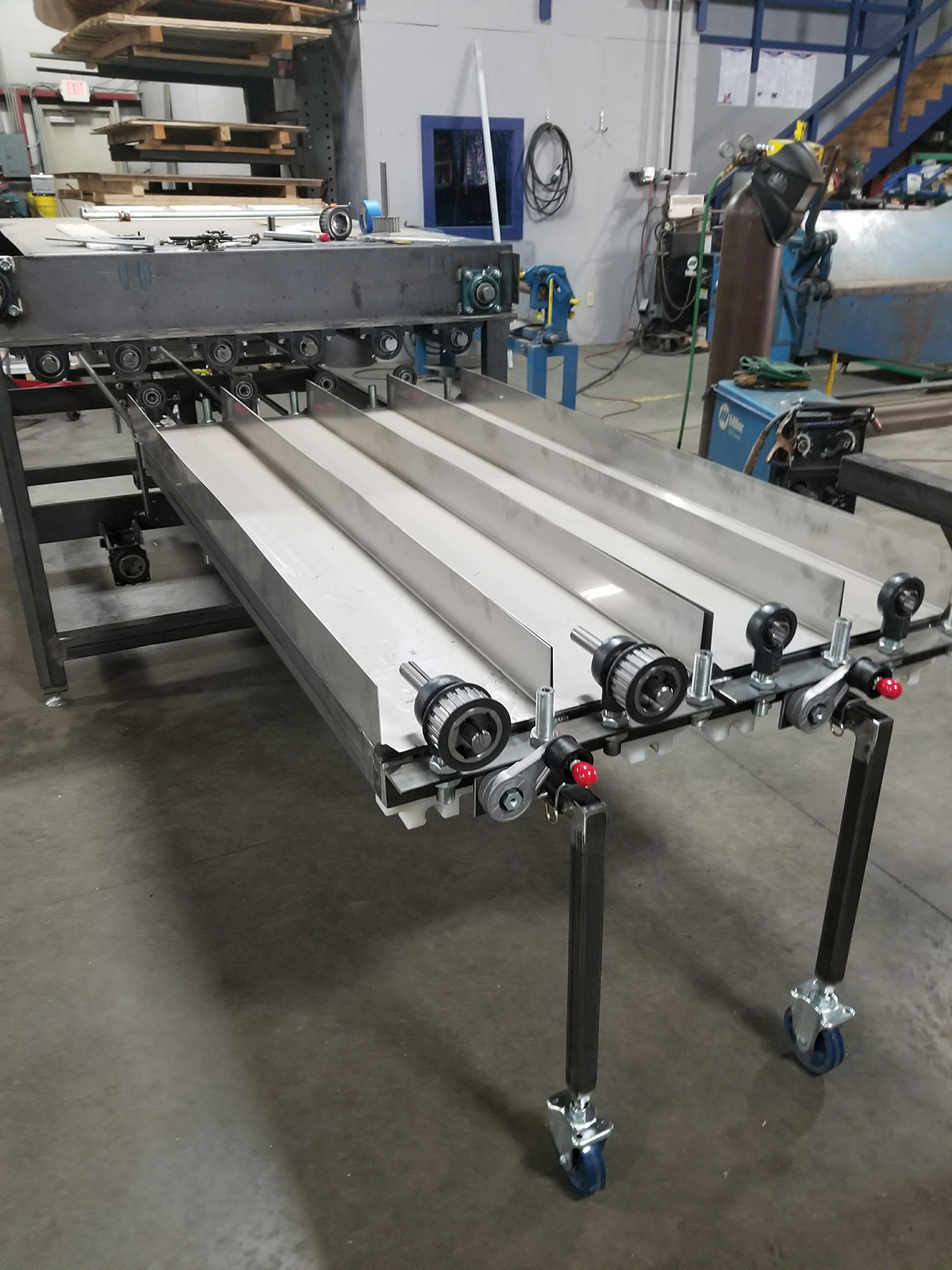

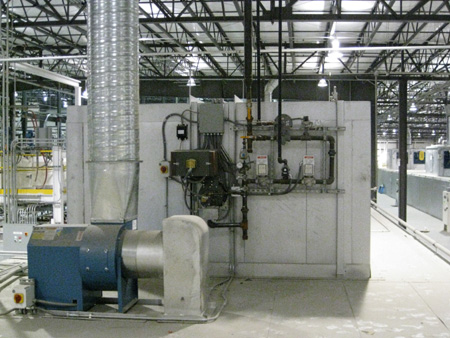

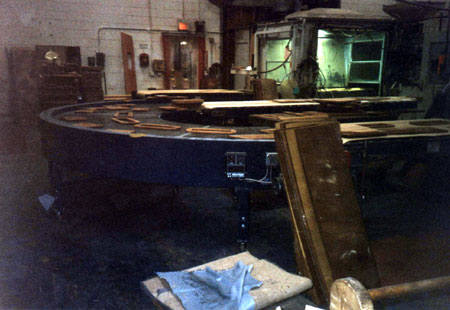

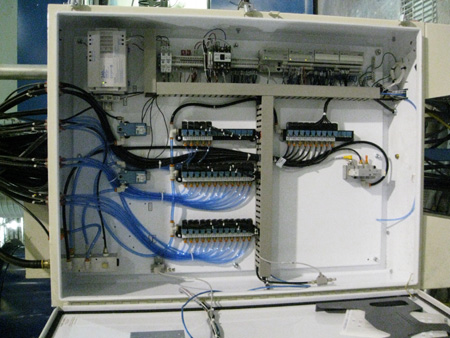

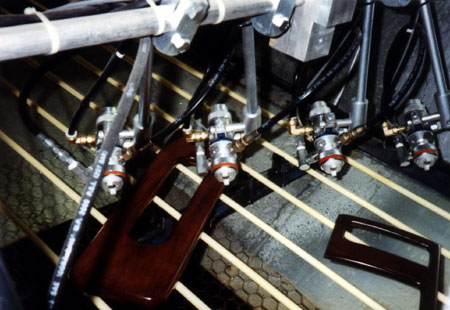

Below are some examples of different flatline spray machines we have installed:
